Cylindrical cell battery pilot line assembly line can case crimping sealing machine
Cylindrical cell battery pilot line assembly line can case crimping sealing machine
Products
Products DETAILS

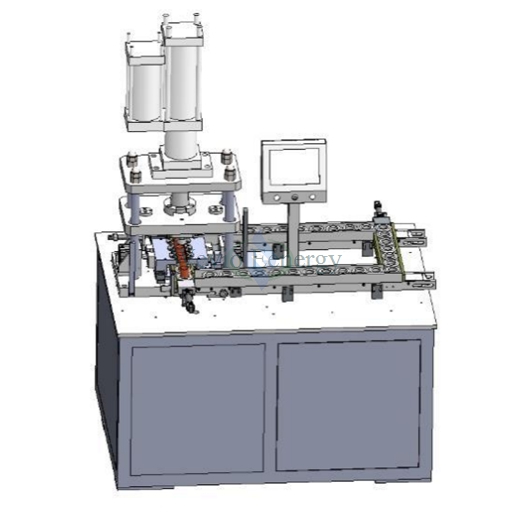

Cylindrical cell battery pilot line assembly line can case crimping sealing machine
Technical Parameters
The equipment uses a gas boosting cylinder as the main power to drive the pressure mechanism, and the conveying mechanism drives the battery core to seal the sealing position. The lower mold has a two-flap structure, with stable sealing dimensions, low energy consumption, low noise, and easy operation and adjustment.
The size of each seal can be fine-tuned, the speed can be adjusted, and the sealing force can be controlled;Production efficiency: 40pcs/min
Power supply: single-phase AC220V ± 5%, 50Hz
Power 1000W
Weight: 1200KG
Equipment size: W1250mm*D940mm*H1900mm
