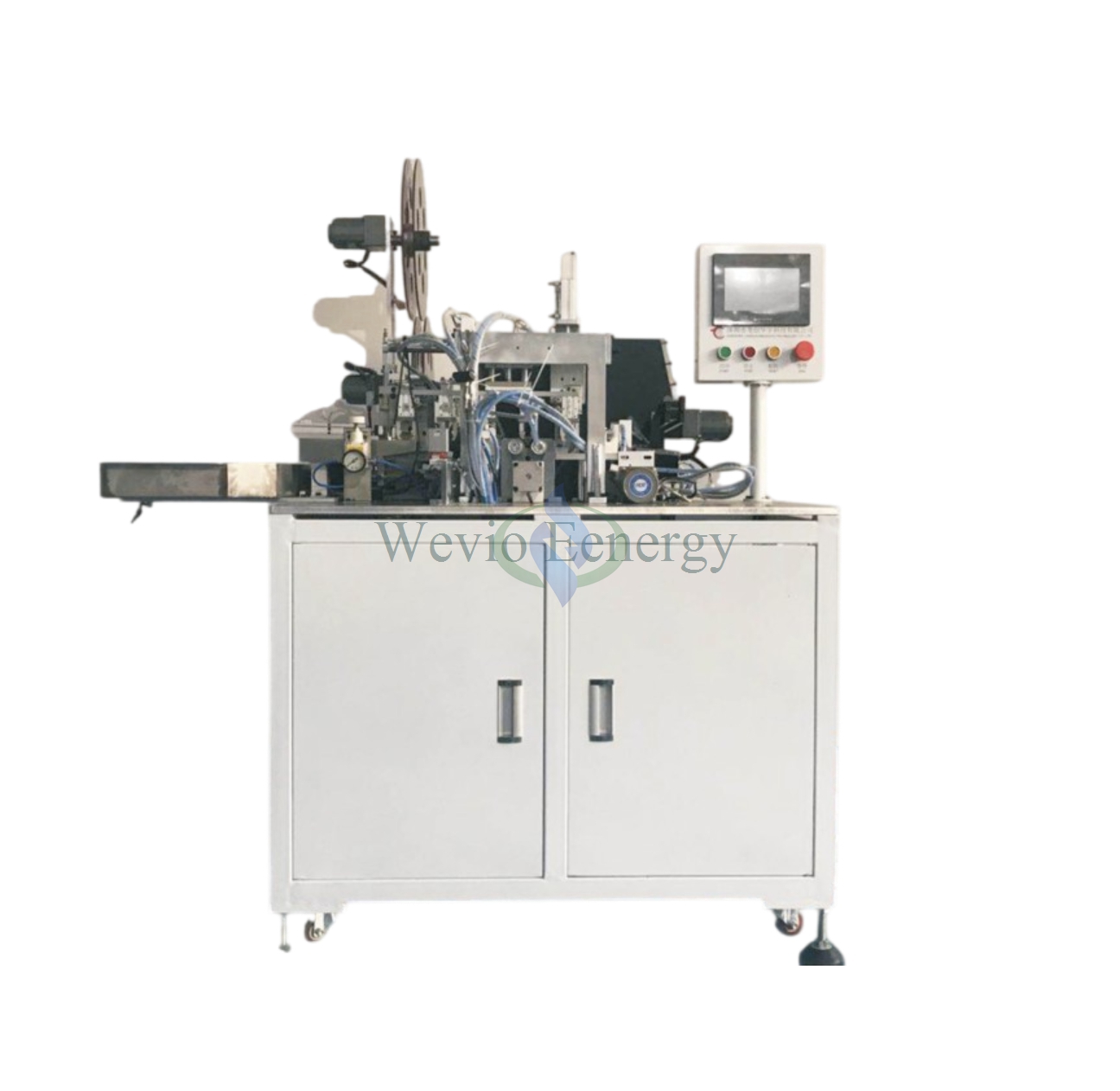

Cylindrical cell battery pilot line assembly line insert jelly roll can case Machine
Technical Parameters
This equipment is used to automatically punch and place the bottom pad, and the battery cell is automatically put into the Can case. It has a humanized structure, simple operation, stable, reliable and efficient, and is suitable for mass production.
1. Manually place the jelly roll or connect it with the winding machine;
2. Automatically arrange the Can case;
3. Detect and remove the jelly roll that is too large;
4. Automatically find the cathode and anode tabs and automatically fold the tabs;
5. Automatically add the bottom pad and insert the Can case;
6. The belt line discharges the material, and the bottom pad and rolling machine can be added to the docking bottom;
Rated voltage: 380V50HZ
Rated power: 2kw
Working air pressure: 5-7kgf/cm2
Scope of application: 10/14/17/18/21/26
Work efficiency: 40-45ppm/min (single station) 70ppm/min (double station)
Number of operators: 1 person
Production line size: L1300xW1100xH1700mm
