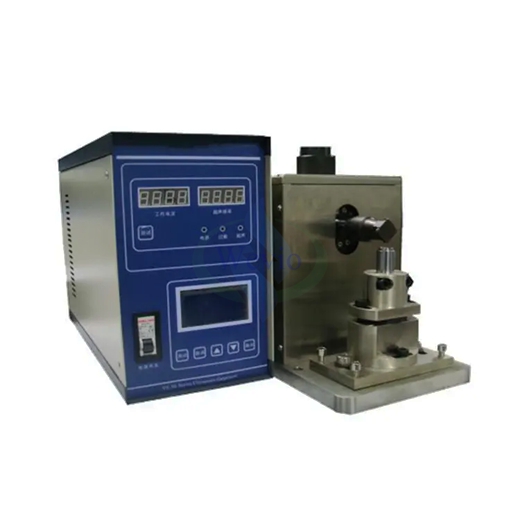

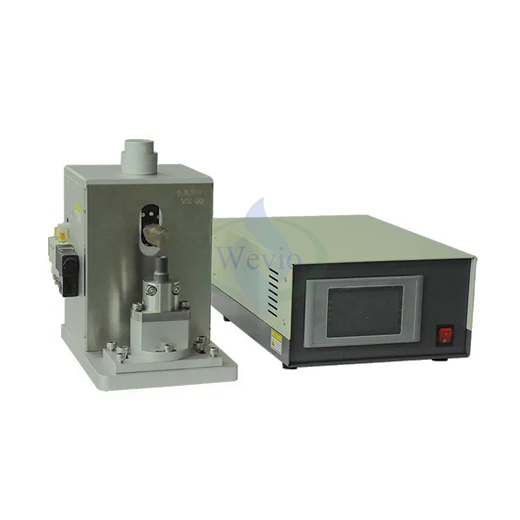

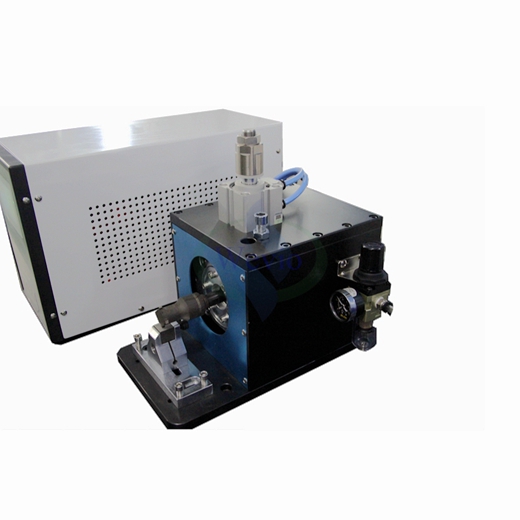

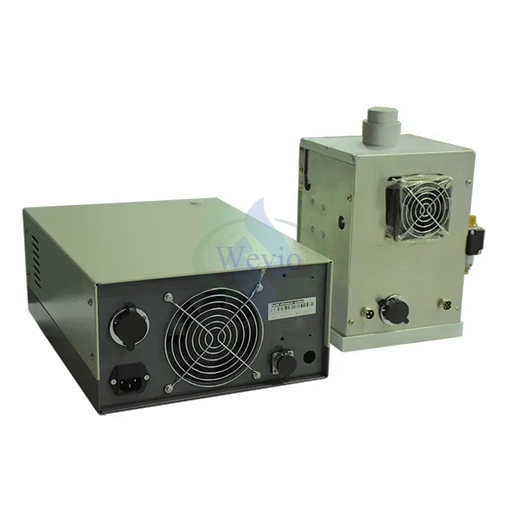

Lithium Ion Battery Ultrasonic Tab Metal Spot Welding Machine

Lithium Ion Battery Ultrasonic Tab Metal Spot Welding Machine

Products Introduction

The ultrasonic electrode ear metal spot welding machine is generally used in the metal welding of winding and laminating process. It has the characteristics of small size, beautiful appearance, easy operation, solid structure, stable and safe use.

Product Features

* Touch screen interface, intuitive and convenient, frequency automatic tracking.

* No oxidation traces, ultrasonic cleaning function, metal surface stains or oxides, no surface treatment, but also perfect welding.

* All workpieces do not need to be pre-treated, and can be fused without solder and welding oil additives, which is economical and convenient.

* The welding head is made of wear-resistant material, durable.

* Small internal resistance of solder joints. The electrical conductivity after welding is good, and its resistivity is very low, close to zero.

* The welding time is very short, generally can be instantly welded within 0.01-25 seconds.

* The solder joint is firm, the working temperature does not exceed its annealing temperature, does not change the metallographic structure of the workpiece, the welding strength is stronger than other methods of welding, and the welding interface is neat and clean.

* Low welding cost, fast speed, easy operation, easy maintenance.

* Welding does not produce sparks, operator safety, no smoke smell, will not cause air pollution.

Product parameter

* Welding copper aluminum universal

* Working voltage: AC220V/50Hz

* Working air pressure: 0.5 ~ 0.7Mpa

* Ultrasonic frequency: 40KHz (automatic tracking)

* Power: 800W (adjustable)

* Welding time: 0 ~ 1S

* Welding layer within 20 layers

* Drive form: pneumatic

* Weight: about 60Kg

* Control box size: L360×W480×H200mm

* Generator size: L200×W460×H270mm
