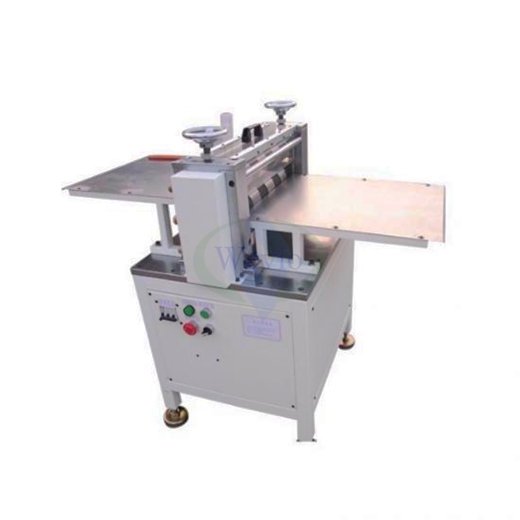

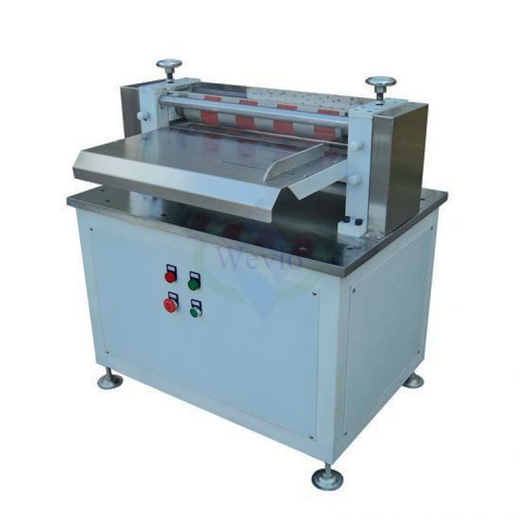

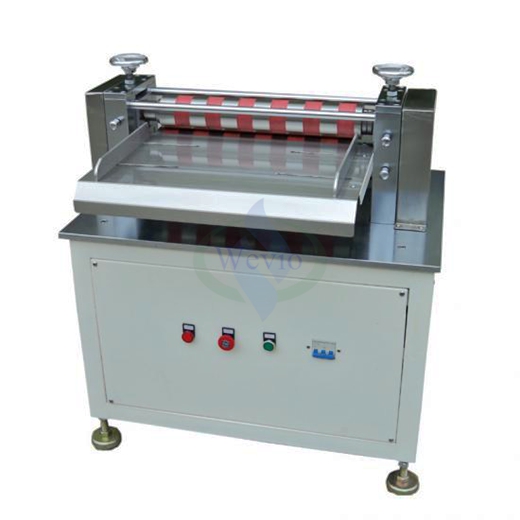

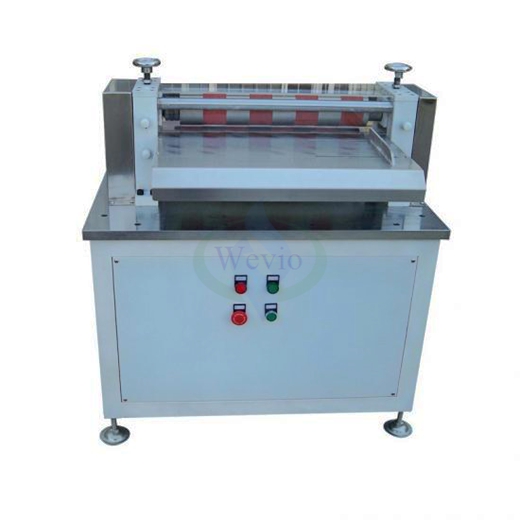

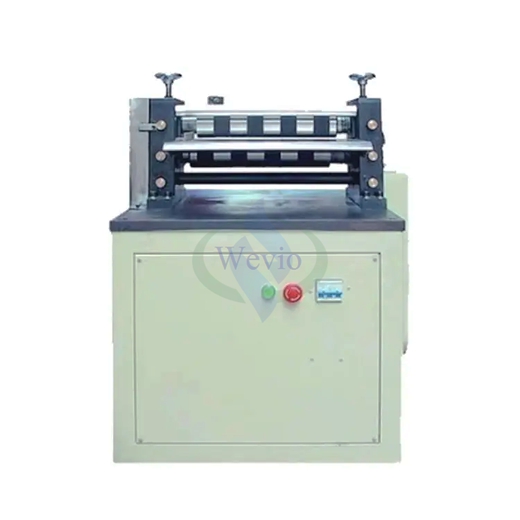

High-Accuracy Semi-automatic Lithium cylindrical Battery Electrode Slitting Machine 18650

High-Accuracy Semi-automatic Lithium cylindrical Battery Electrode Slitting Machine 18650

Technical parameters:

Voltage: AC 110/220V ± 10%, 50/60 Hz

Power: 200W

Cutting Width: A 4 sets of slitting blades,59/59/61/61 (two blades with slitting width of 59mm, and another two with slitting width of 61 mm);

Max slitting width: 20～280mm;

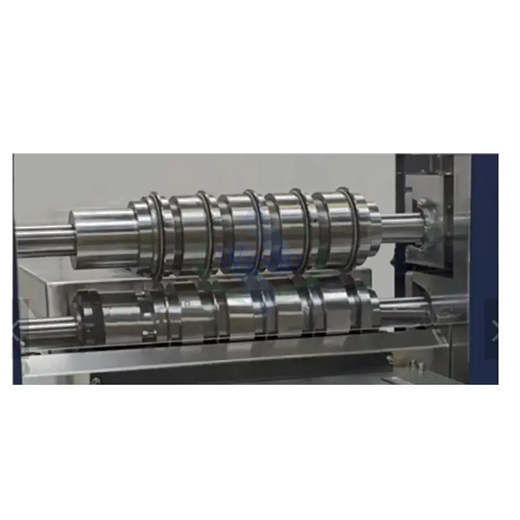

Knife type: Upper and lower round knife;

Slitting thickness: 100～300 um;

Slitting Precision: ±0.05mm;

Burr condition: ≤20μm

Hob diameter: SKD11,100mm;

Slitting speed: 0~4m/min, Adjustable;

Cutting stroke: 250 mm;

Product Dimensions: L870mm*W970mm*H450mm

Weight:60kg

Use environment: The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH, and no vibration or electromagnetic interference is required

Warranty:One year warranty with lifetime support.
