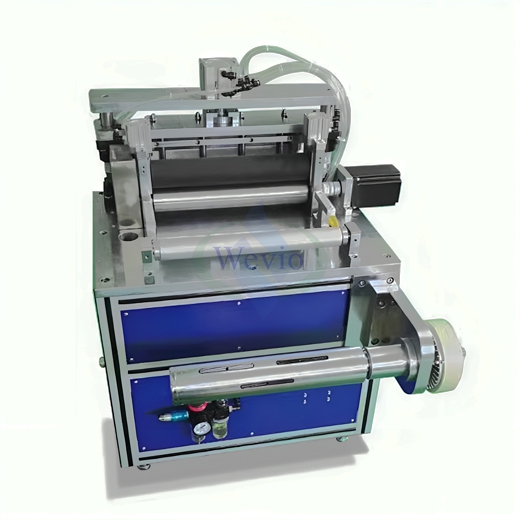

Lithium Ion Battery Electrodes Cutters machine for cylindrical,punch cell and coin cell

Lithium Ion Battery Electrodes Cutters machine for cylindrical,punch cell and coin cell

Products Introduction:

This product is mainly used in the battery positive and negative chip single cut

Bah. Can be arbitrarily set cutting length, quantity, speed, can be cut separately, this machine with automatic unwinding function, by tension control of automatic discharge and automatic stop, discharge speed can be adjusted, the loading shaft for air expansion shaft, easy loading and unloading

Product Features

* Can be arbitrarily set cutting length, quantity, speed, can be cut separately;

* Automatically adjust the tension;

* Continuous cutting, fixed length and cursor tracking can be selected, suitable for multi-section cutting, the compensation of the incision can be set;

* Width of 10~300mm, length of 1~9999

Any setting in mm.

* The machine adopts PLC,HIM control, easy to use and operate.

* Exquisite appearance, sheet metal using three-dimensional geometric design, simple beauty;

* Easy to operate, safe and reliable, small size;

Product parameter

* Unwinding: unwinding gas expansion shaft fixed, unwinding tension using automatic unwinding, constant tension.

* Fixed length cutting speed: 5~250mm/s

* Color cutting speed: 5~150mm/s

* Winding diameter (Max):250mm

* Burr condition ≤25um

* Power supply: 220V/50Hz

* Power: 1.2KW

* Compressed air: 0.5Mpa~ 0.8Mpa

* Applicable range: Width 300mm length 1 ~ 9999mm cutting

* Cutting accuracy: The servo system and color marker sensor are used to track the fixed length, with high accuracy, and the cutting accuracy is ±0.3mm within the adjustable range

* Total size of equipment: L700*W700*H1000mm (guide plate length 800, total length 1500mm)

* Weight: about 240kg
