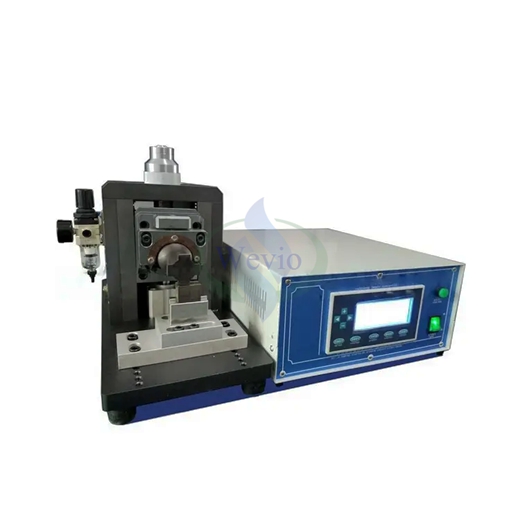

Nickel Strip Mantal Ultrasonic Spot Welder Machine for Pouch Battery Tab Welding

Nickel Strip Mantal Ultrasonic Spot Welder Machine for Pouch Battery Tab Welding

Products Introduction

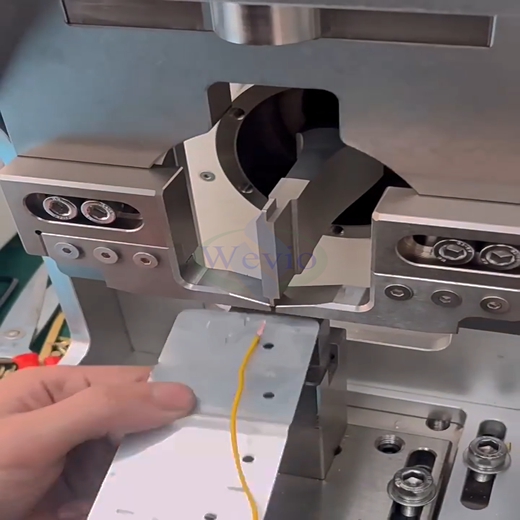

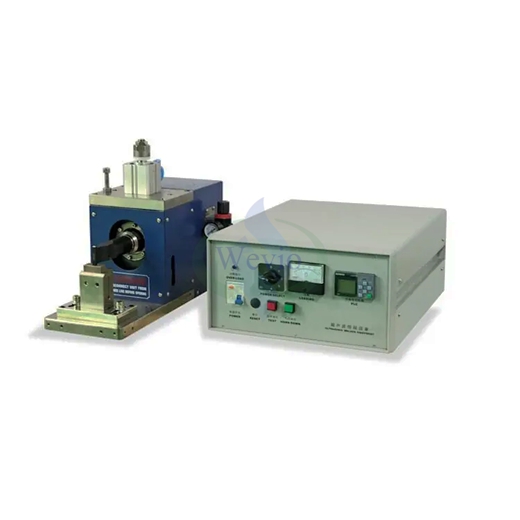

Ultrasonic electrode metal spot welding machine is commonly used in metal welding of winding and laminating process, it is small in size, beautiful in appearance, easy to operate, strong in structure, stable and safe in use.

Product Features

* Imported PLC control operation, stable welding, automatic frequency tracking.

* No oxidation traces, ultrasonic cleaning function, metal surface contamination or oxygen, without surface treatment, can also be perfect welding.

* All workpieces do not need to be pre-treated, and can be fused without solder and welding oil additives, which is economical and convenient.

* The welding head is made of wear-resistant material, durable.

* Small internal resistance of solder joints. The electrical conductivity after welding is good, and its resistivity is very low, close to zero.

* Welding time is very short, generally can be completed within 0.01-2S seconds.

* The solder joint is firm, the working temperature does not exceed its annealing temperature, does not change the metallographic structure of the workpiece, the welding strength is stronger than other methods of welding, and the welding interface is neat and clean.

* Low welding cost, fast speed, easy operation, easy maintenance.

* Welding does not produce sparks, operator safety, no smoke smell, will not create air pollution.

Product parameter

* Welding copper aluminum universal

* Working voltage: AC220V/50Hz

* Working air pressure: 0.5 ~ 0.7Mpa

* Ultrasonic frequency: 40KHz (automatic tracking)

* Power: 1000W(adjustable)

* Welding time: 0~1S

* Solder joint 5*5mm

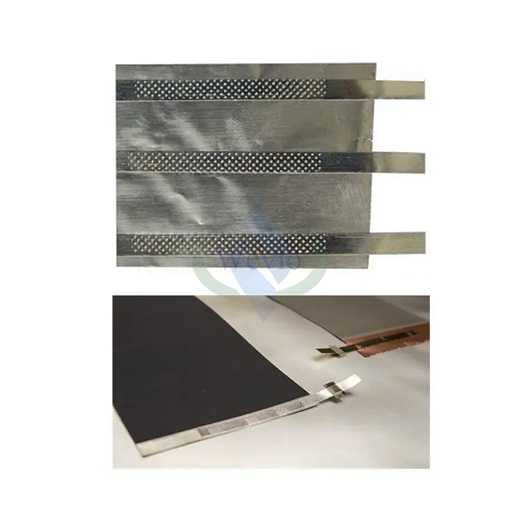

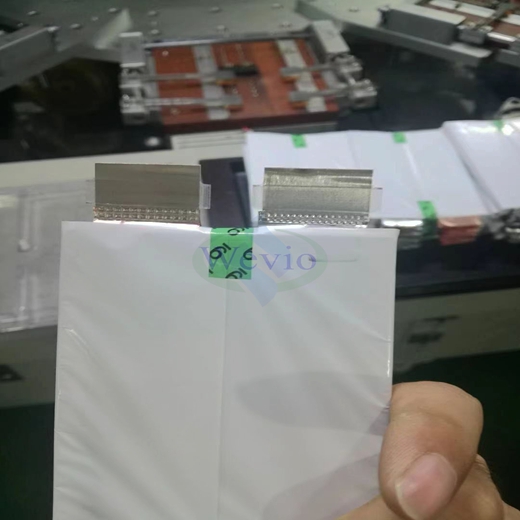

* Welding substrate

(1) Positive electrode: A. Aluminum foil 0.015-0.020mm

B. Pure aluminum strip 0.1-0.2mm

(2) Negative electrode: A. Copper foil 0.009-0.012mm;

B. Copper nickel-plated tape 0.1-0.2mm

* Welding layer within 20 layers;* Drive form: pneumatic

* Weight: about 60Kg

* Control box size: L360×W480×H200mm

* Generator welding machine size: L200×W460×H270mm
