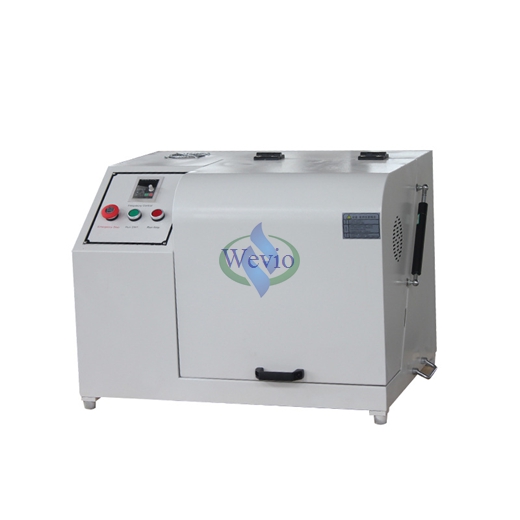

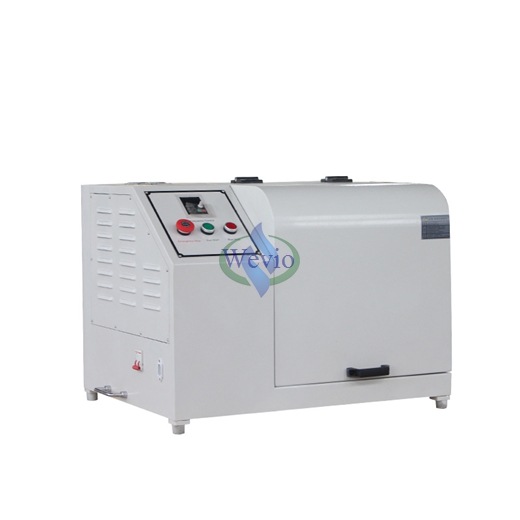

Battery material powder grinding ball mill 16L 360° rotating planetary mill all-round planetary mill planetary grinding instrument

Parameter

(1) Voltage: 220V AC.
(2) Feed particle size: Soil material ≤10MM, other materials ≤3MM; Output particle size: Minimum 0.1μm.
(3) Rotation speed (R/MIN): Planetary rotation: 35-405, Self-rotation: 70-810.
(4) Three-phase motor frequency converter power: 0.75KW (with speed display electronic monitoring device, continuous operation timing (1-3600min): forward and reverse rotation cycle (1-999min)).
(5) Speed control method: Stepless speed regulation, automatic timing forward and reverse rotation, automatic shutdown.
(6) Maximum continuous working time (full load): 48 hours.
(7) The ball mill adopts high-tech microcomputer chip control, which can repeatedly alternate between forward and reverse rotation according to the set program (0-999min), and also alternate between forward rotation, pause, reverse rotation, pause, and forward rotation (0-999min), especially suitable for applications requiring cooling or intermittent operation.
(8) Suitable for dry grinding and wet grinding; optional vacuum inert gas grinding and low-temperature grinding are available;
(9) Grease lubrication is used in the gear transmission to reduce equipment operating noise.
(10) One grinding host.
(11) Four grinding jars can be configured; specifications are available from 50-1000ml; materials can be selected from zirconia, corundum, agate, cemented carbide, stainless steel, PTFE, polyurethane, and nylon; because agate is a natural product, small fine lines or small sand holes may appear, and Class B jars come with iron sleeves.
(12) Matching grinding balls (different proportions of large, medium, and small sizes).
