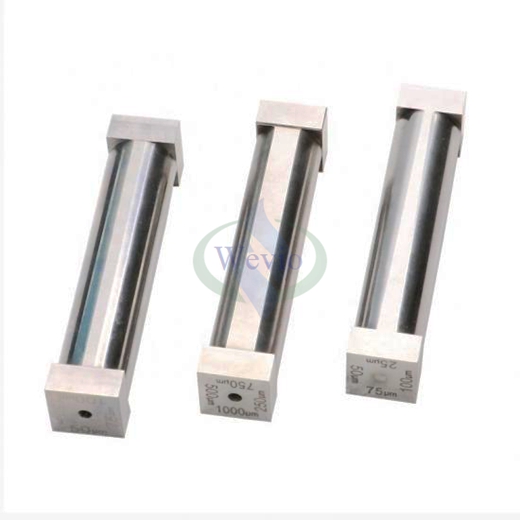

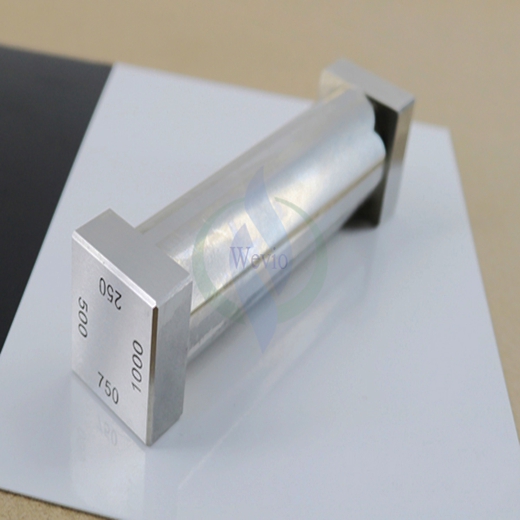

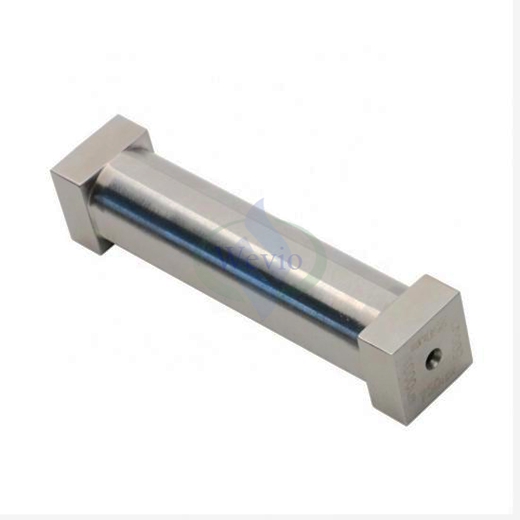

100 Four Side Stainless Steel Wet Film Applicator for battery coating

100 Four Side Stainless Steel Wet Film Applicator for battery coating

Features

1.The four-sided coating device is designed for uniform coating of paints, adhesives and similar products on the flat top of the substrate.

2. The multi-slot coating is the diversity of multiple options and the precision of the fixed slot evaporator in one instrument. Suitable for water, acidic and alkaline products.

Material: stainless steel wear-resistant material

Effective coating width: 80 mm, total width: 100 mm

The coating thickness for your choice

1 (5um,10um,15um,20um)

2:(25um,50um,75um,100um)

3:(50um,100um,150um,200um)

4:(30um,60um,90um,120um)

5:(100um, 200um,300um,400um)

6:(50um, 75um,100um,125um)

7:(100um, 150um,200um,250um)

8:(250um, 500um,750um,1000um) For lithium battery lab research, we usually use the No.7 with thickness 150um or 250um.
