WV Replacement Top Pressing Rod for Pressing Dies - DieR

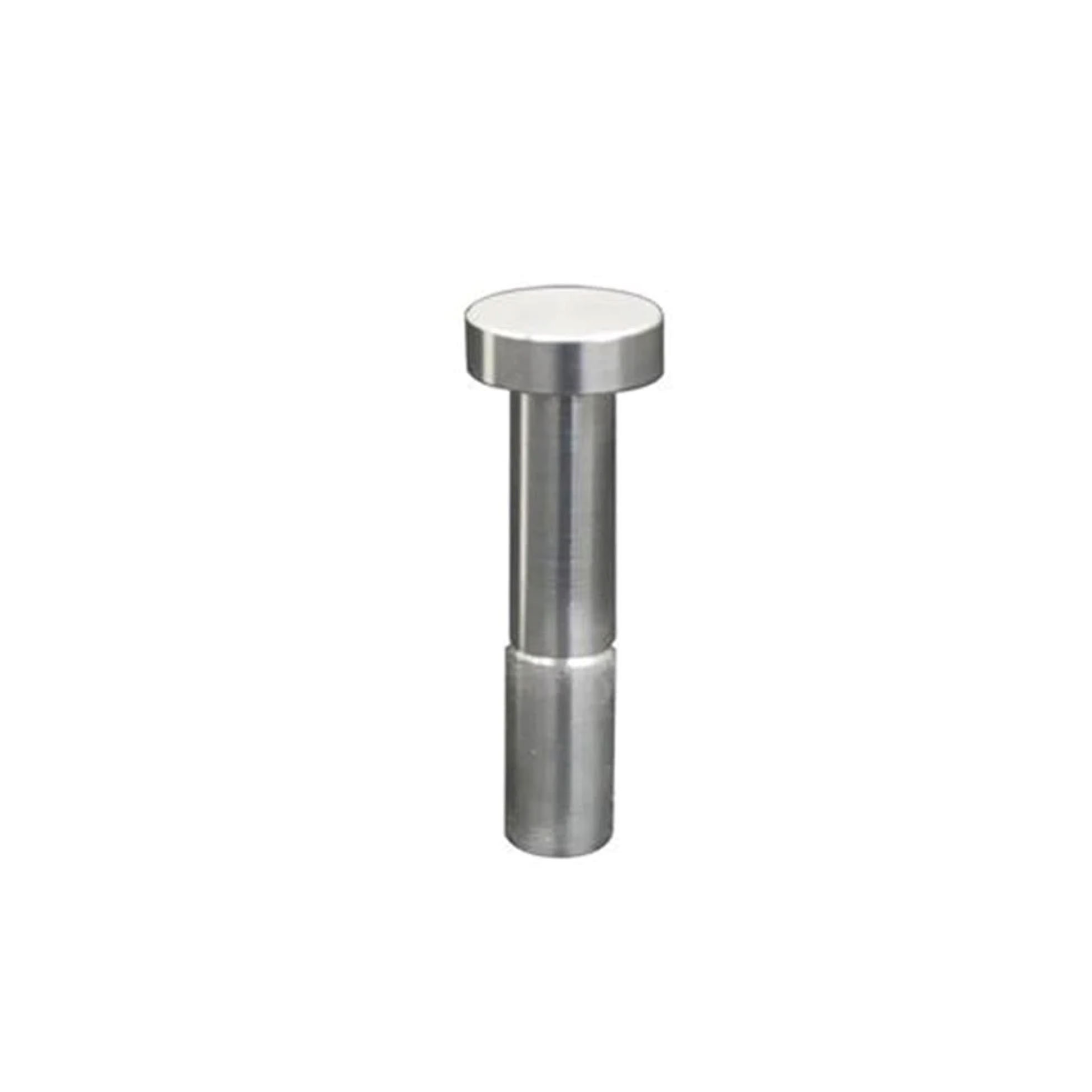

Die-Rod is a replacement pressing rod for Pressing Dies. The pressing rod is made with the same material as the Die Sleeve but with a slightly smaller diameter to ensure the fit.

SPECIFICATIONS:

Material	HRC 60 - 62 hardened steel Ra 0.08μm highly polished steel Max temperature: 200°C
Model Number	Die03Rod	Die06Rod	Die10Rod	Die12Rod
For Use With Die	Die-03D	Die-06D-B	Die-10D-B	Die-12D-B
Dimensions	E. Length: 29.5mm F. Head Thickness: N/A G. Diameter: 3.175mm (1/8")	E. Length: 25.2mm F. Head Thickness: 5mm G. Diameter: 6.35mm (1/4")	E. Length: 28.6mm F. Head Thickness: 5.4 mm G. Diameter: 10mm	E. Length: 28mm F. Head Thickness: 5mm G. Diameter: 12.7mm (1/2")
Package Content	One replacement top pressing rod.
Safety Precaution	To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time. Read the manual, especially the die installation schematic, before the operation. Do not press flammable, explosive materials. The operator must wear protective goggles. You must have a hydraulic pellet press equipped with the Protect Cover, please click the pictures to the left to order. To avoid damaging the die core and sleeve, we strongly recommend pressing powder with a professional laboratory hydraulic press to ensure the evenest pressing interface and uniform pressure force.
Application Notes	Small diameter Pressing Die Rods are extremely vulnerable to off-center compression. Always check the pressing surface for good surface contact before applying load. Pressing Dies and replacement Rods are consumable and will not be covered by warranty.
