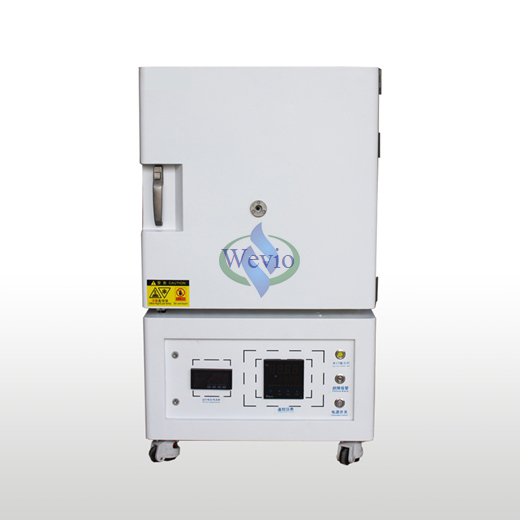

WV-X-17 Series 1650°C High-Temperature Box-Type Muffle Furnace for High-temperature Sintering, Metal Annealing, Quality Inspection, Baking, Pre-sintering of Zirconia Discs

The WV-X-17 series is a high-temperature box furnace with a maximum temperature of 1650°C. It is suitable for universities, research institutes, and industrial & mining enterprises for applications such as high-temperature sintering, metal annealing, and quality inspection. It is also widely used in the powder metallurgy and dental industries for baking and pre-sintering of zirconia discs. Depending on the heating chamber size, it can be used for laboratory testing, pilot-scale trials, and batch production.

[Chamber Volume] 4.5 L – 150 L
[Rated Temperature] 1650°C
[Working Temperature] ≤1600°C
[Temperature Control Accuracy] ±1°C

Product Features

1. Integrated design optimizes the furnace structure and saves space.

2. The furnace chamber is made of polycrystalline alumina fiber material, which resists deformation at high temperatures and provides excellent thermal insulation.

3. Double-layer shell structure with an air-cooling system; outer surface temperature ≤ 60°C.

4. Intelligent PID controller with 50 programmable segments, enabling ramped heating curves, adjustable heating rates, dwell time control, and automatic shutdown.

5. High temperature control accuracy: ±0.1°C below 1000°C; ±1°C above 1000°C.

6. Equipped with safety protections including door-open power-off, over-temperature alarm, leakage protection, and over-temperature protection.

7. Optional large-screen paperless recorder for real-time recording of heating curves, with storage card support for data analysis and printing.
