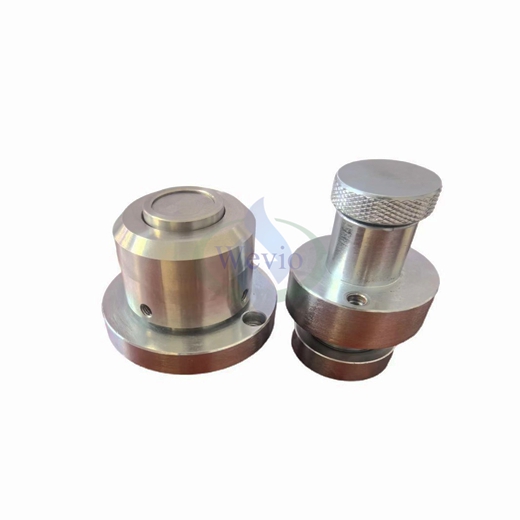

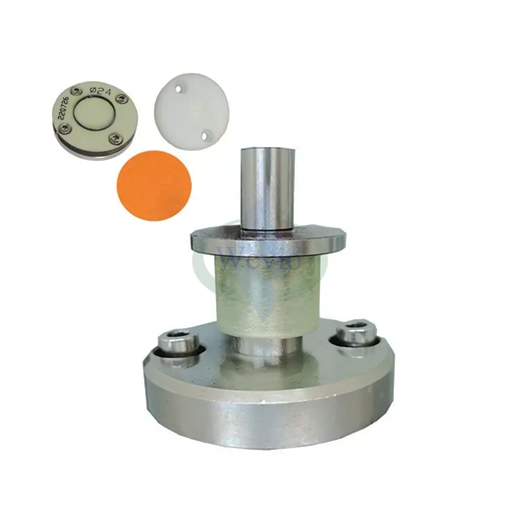

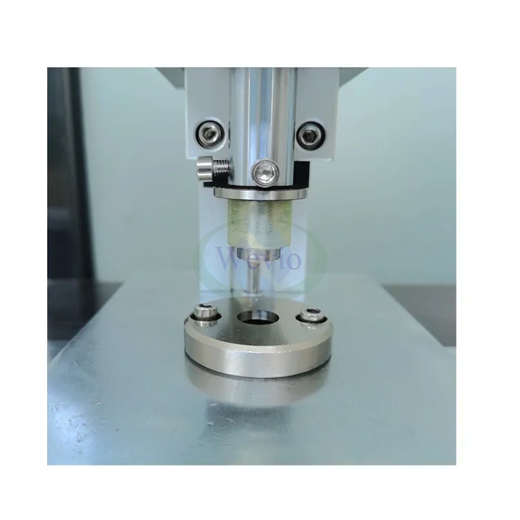

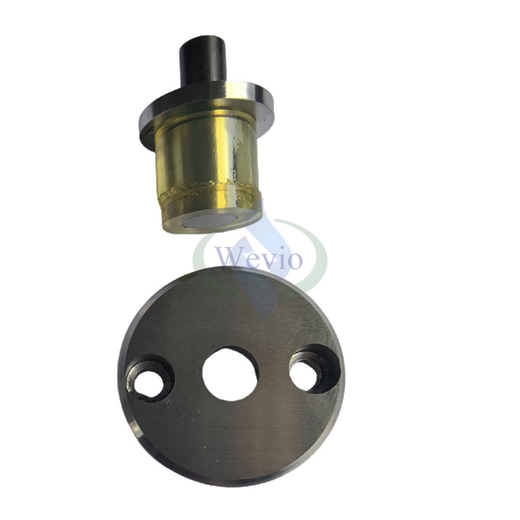

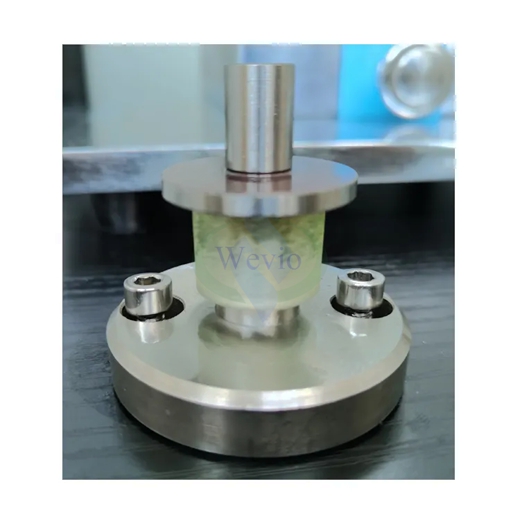

Small Precision Ring Disc Cutting Die Lab Coin Cell Punch Tool

Machine model

WV-CKMJ-324

Operating

Manual install

Punching size

Diameter 3-24 mm customized

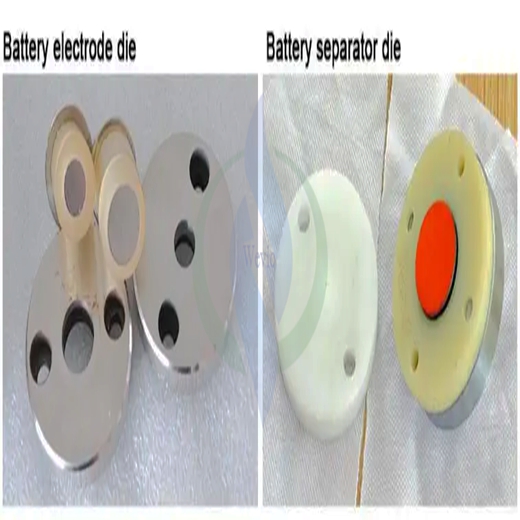

Application Notes

For make CR2016, CR2025 and CR2032 coin cell batteries,
we will need at least three cutting dies:
A 15mm (for negative side case, which is 16.5mm in diameter)
B 19mm (for positive side case, which is 20mm in diameter)
C 20 mm (for separator to fully separate the electrodes)
For CR2450 coin cell:
20mm cutting die can be used for cutting electrode discs and the
24mm cutting die for either electrode or separator disc.

Punching thickness

0.005-0.5mm electrode and separator

Warranty

One Year
