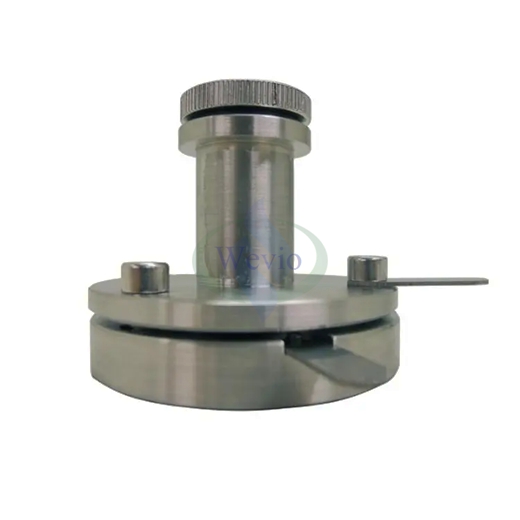

Battery Assembly Split Coin Cell for Battery Material Testing

Item No.: WV-CM2032

Manufacture: Guangdong, China

Delivery Time: 7-20days

Customizable: Yes

Send Email:

[email protected]

Products DETAILS

Battery Assembly Split Coin Cell for Battery Material Testing



Battery Assembly Split Coin Cell for Battery Material Testing


Production Feature

The WV-CM2032 removable test cell is designed for the research and development of rechargeable battery materials. It can accommodate various sizes of electrodes (5, 10, 12, 15, 19, 20 and 24 mm diameter) and separators (select size from product options) and allows for easy and quick testing of electrodes. Note: Custom (gold plated) test cells are not returnable or exchangeable.


Specification of the Two Electrode Split Test Cell for Lab Coin Cell Battery Reseach

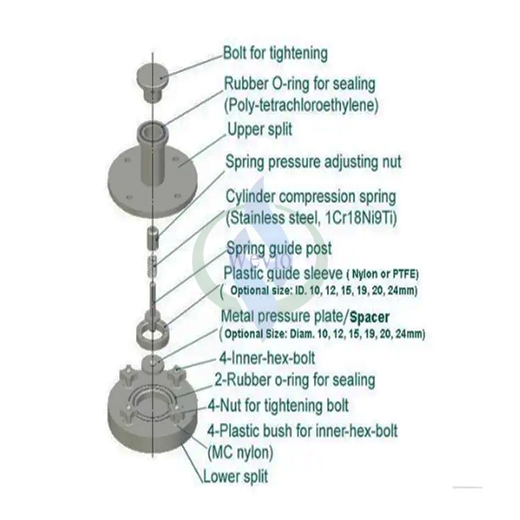

Structure
  • Full stainless steel SS304
Max. Cell Thickness
  • 6 mm  (cathode+separator+anode)


Features
  • A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling
  • Sealed by electrolyte corrosive-proof PTFE O-rings  (click picture below left to order spare )
  • Electrolyte corrosive-proof PTFE Guide Sleeve capable of working upto 200ºC. (click pic below right to order spare )
  • Easy to separate after testing
  • Small enough to be put in and taken out from a glove box
  • Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility
Max. Working Temperature
  • 200 ºC ( continuous )
  • 280ºC ( for < 1 minute )
  • Click picture left to order an oven
Optional
  • Please select the insert size in the Product Options. 5, 10, 12, 15, 19, 20, and 24 mm diameter inserts are available.
  • Anti-corrosive Au coating on the cell contacts and inserts is available at extra cost.

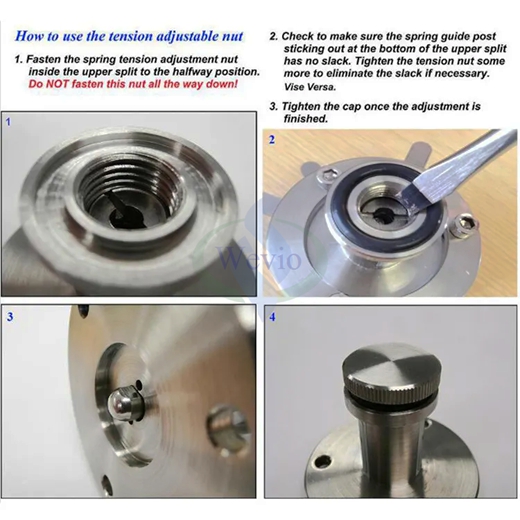

Installation and Operation Notices

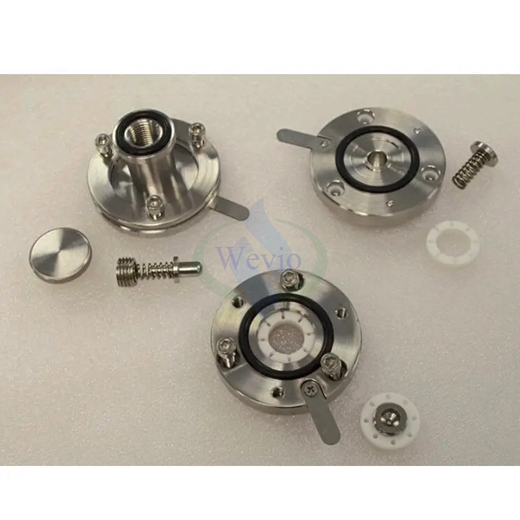

Note: First two photos (left and middle) show the what's included in the split cell tester.


Demo Video-- how to do battery research by the split cell
Note: The separator films, electrodes, electrolyte and etc. shown in the video are NOT included.
Application Notes
  • Enhanced Electrochemical Lithium Storage by Graphene Nanoribbon. STC20-split flat cell (Wevio., Richmond, CA) was used for the present studies.
  • Optional: Purchase a vacuum pen for easy component placement.
