Guangdong Wevio New Energy Co., Ltd
Battery high and low temperature testing machine
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS

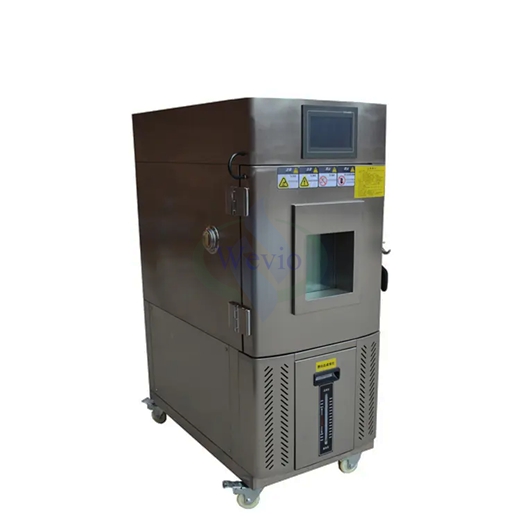

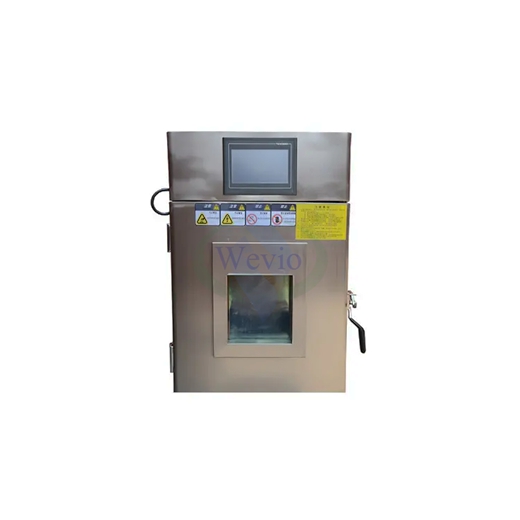

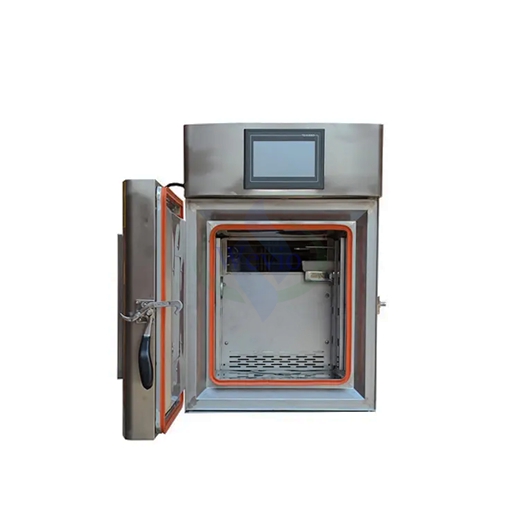

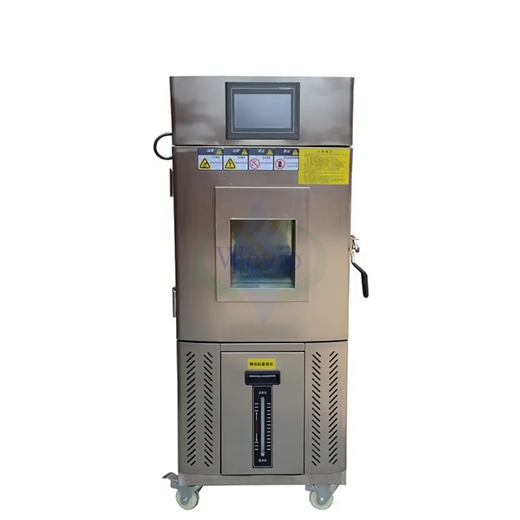

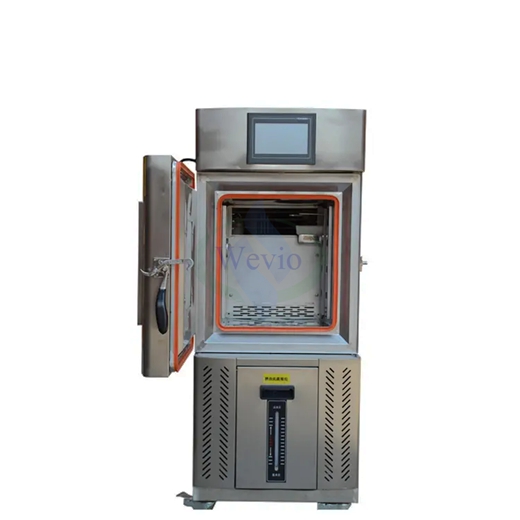

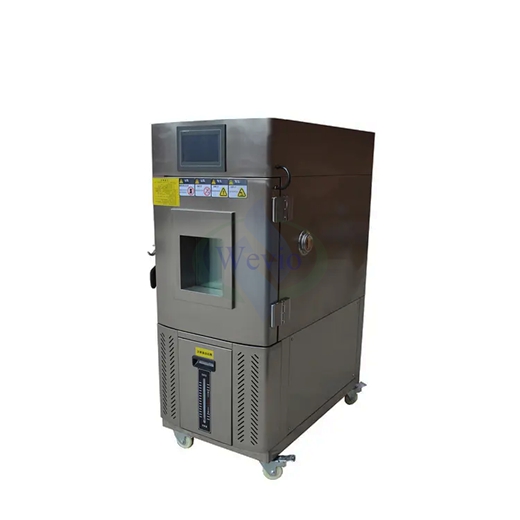

Battery high and low temperature testing machine
Battery high and low temperature testing machine
Feature
1 The laboratory can be used for the testing and development of heat tolerance, humidity tolerance, cold tolerance and dryness tolerance, and can also be used for the formulation of test standards for quality management system engineering, as well as the testing of automation components, automotive components, marine components, electronic components and electrical components in the defense industry and aerospace industry.
2. The system includes the following parts:
The function of the test chamber is to provide a test environment with high and low temperatures, constant humidity and alternating high and low temperature humidity; including refrigeration system, heating system, humidification/dehumidification/water system, ventilation duct system, control system, system safety protection device, etc.
Specification
|
Model
|
Battery high and low temperature testing machine
|
|
Source voltage
|
AC 220V±10%, 50HZ (custom voltage available)
|
|
Power
|
3500W
|
|
Warranty
|
One year limited warranty with life time technical support
|
|
Temperature range
|
-20℃ to 150℃
|
|
Temperature fluctuation
|
Less than ±0.5℃
|
|
Temperature uniformity
|
Less than ±1℃
|
|
Temperature deviation
|
Less than ±2℃
|
|
Temperature rise and fall
|
From 20℃ to -20℃, about 40 minutes
|
|
From 20℃ to 100℃, about 40 minutes
|
|
|
Humidity range
|
20% - 98%R.H (AT+25℃～+85℃)
|
|
Humidity deviation
|
+2/-3%R.H (above 75%R.H ) , ±5% R.H (under 75%R.H )
|
|
Wind speed
|
1.7m/s to 2.5m/s
|
|
The data above is measured under ≤25℃, normal pressure, no-load and no-load conditions,
1/6 space from the inner wall of the cabinet.
|
|
|
Inner box size(L*W*H)
|
350*300*400mm
|
|
Dimension(L*W*H)
|
550*870*1400mm
|
|
Cable hole
|
One 50mm diameter hole on the side on chamber(can be customized)
|
|
Workshop material
|
SUS304 mirror stainless steel plate
|
|
Box shell material
|
SUS304 stainless steel
|
|
Box door
|
A multi-layer insulating glass observation window is installed on the gate, and a heating anti-frost device is provided.
|
|
Lighting
|
A (AC12V) 20W halogen lamp is installed on the chamber door.
|
|
Safety device
|
With over temperature protection, grounding etc
|
|
Shelf
|
Two-layer adjustable height stainless steel strip shelves
|
|
Safety protection device
|
Studio over temperature protection;
Heater short circuit protection;
Humidifier short circuit protection;
Fan overload protection;
Compressor overpressure protection;
Compressor overload protection;
Water shortage protection;
Leakage Protection;
Safe and reliable grounding device.
|
