Laboratory Powder Grinding Machine Vertical Grinding Mill Planetary Ball Mill

Laboratory Powder Grinding Machine Vertical Grinding Mill Planetary Ball Mill

Product Features:

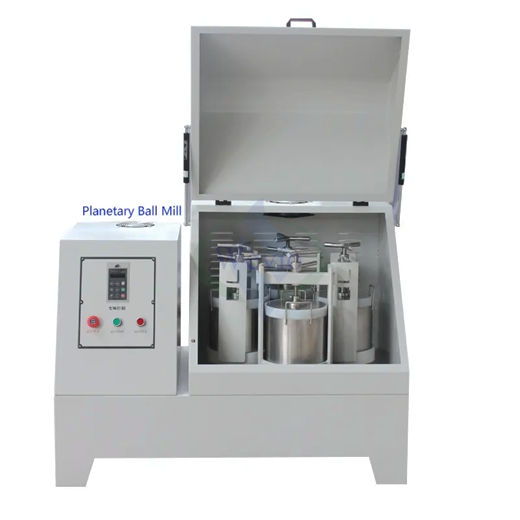

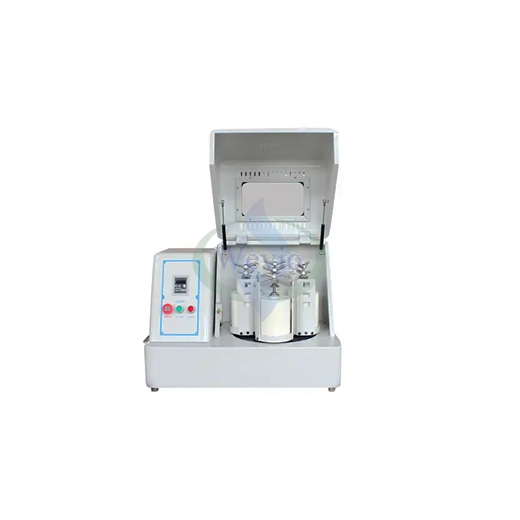

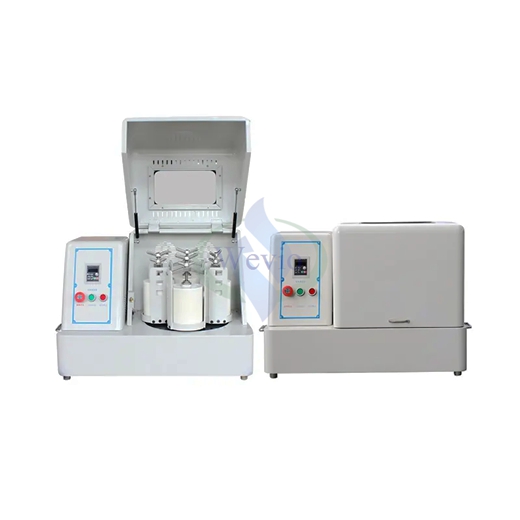

Vertical square planetary ball mill is a powder device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials. Our planetary ball mill is small size, full function, high efficiency, low noise, is the ideal equipment for scientific research units, colleges and universities, enterprise laboratories to obtain research samples (each experiment can obtain four samples at the same time), with vacuum ball mill tank, can grind samples in vacuum state.

Equipment shell adopts semi-circular design elements, high precision mold stamping, elegant and exquisite, high-end and stable; The machining parts are made of CNC machining technology, the planetary disk is cast as a whole, and the transmission gear is made of special material precision gear to ensure that the equipment runs smoothly and quietly at high speed. Grinding can pressing device is easy to operate, safe and reliable.

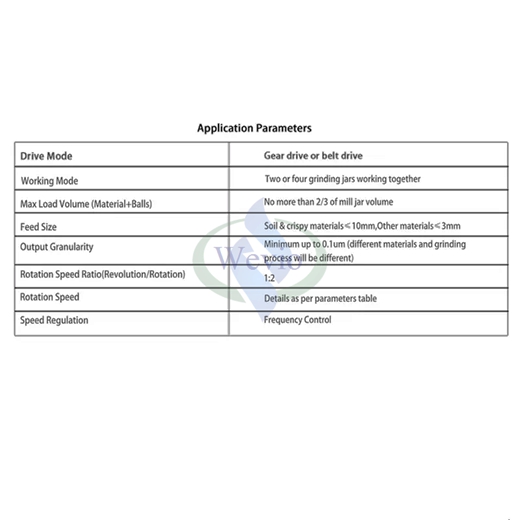

Technical parameters:

XQMS-2A: Number of tanks: 4 vacuum spherical tanks of 50-250ml

Motor power :0.75KW

Speed control mode: frequency conversion speed control

Equipment weight :93kg

Equipment volume :750*470*564mm

XQM-10A:Number of tanks: 4 1-2L vacuum spherical tanks

Motor power :1.5KW

Speed control mode: frequency conversion speed control

Weight :150kg

Equipment volume :900*600*640mm

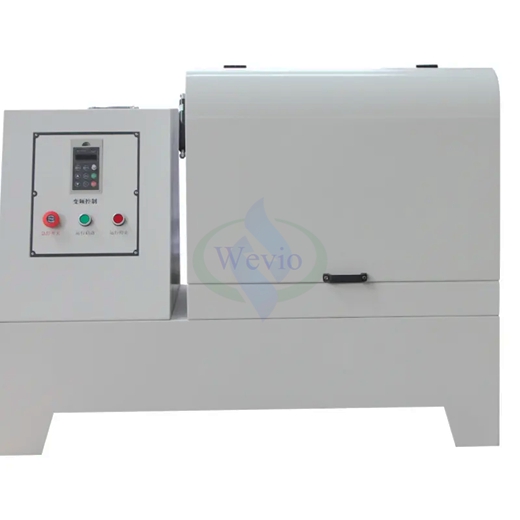

Remark:Through the way of gear transmission, two or four ball grinding tanks work at the same time, the volume of the ball grinding tank is 5-50L per tank, and the total volume is 20-200L, which can be selected according to different production needs
