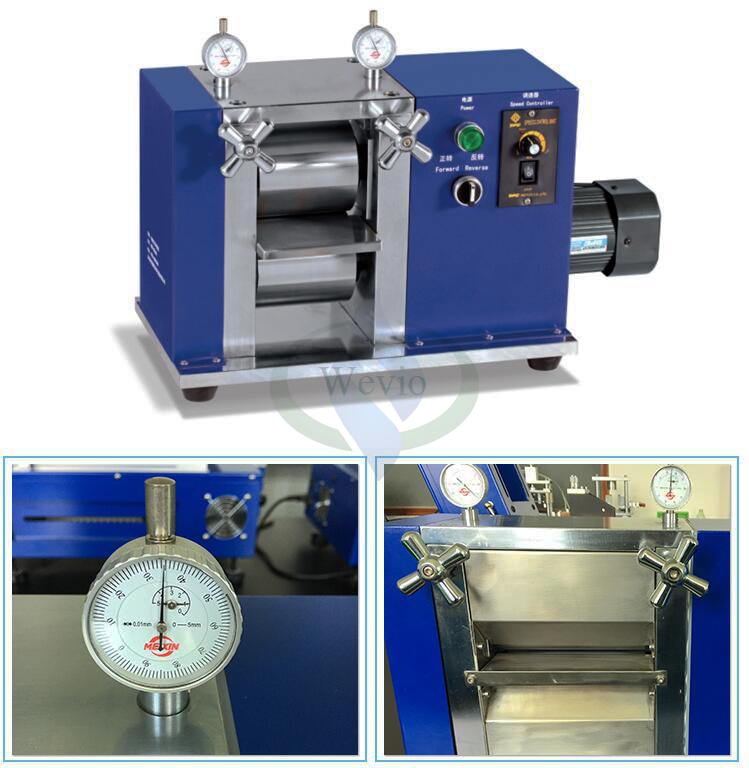

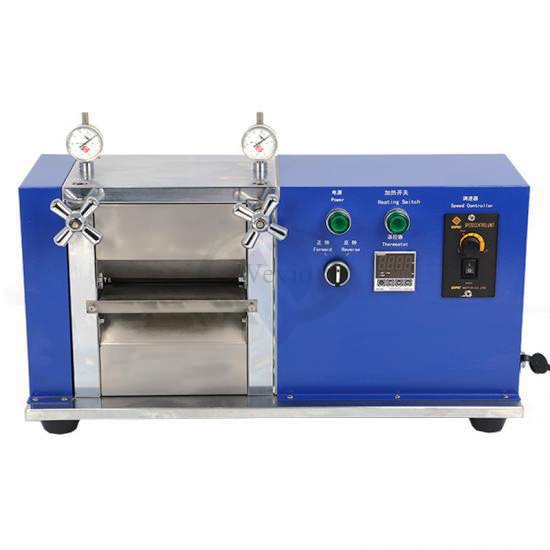

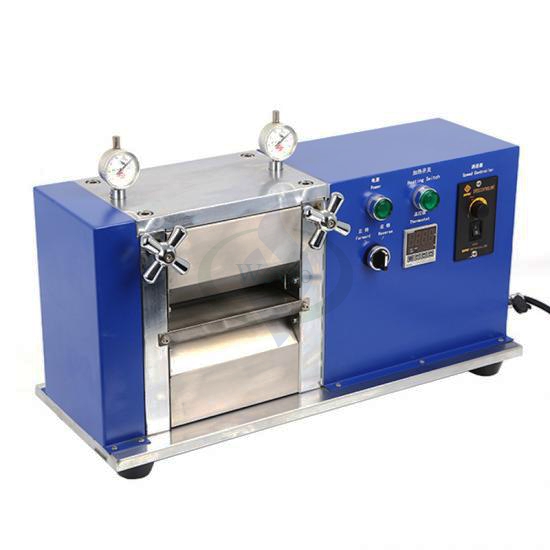

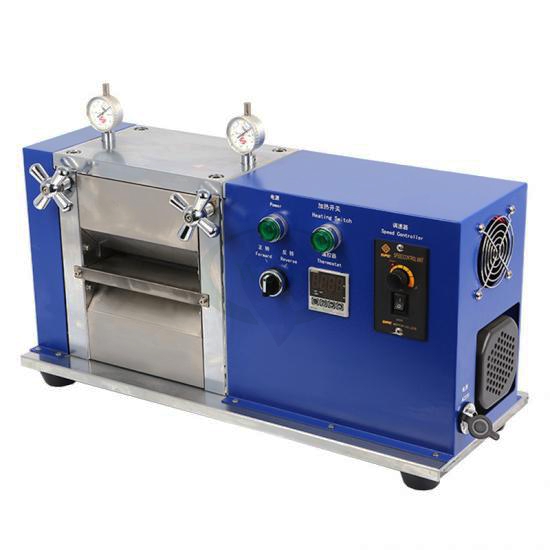

Dia100x200mm Lab Battery Electrode Sheet Electric Rolling Press Machine with Heating calendaring machine

Dia100x200mm Lab Battery Electrode Sheet Electric Rolling Press Machine with Heating calendaring machine

Products Introduction:
It is mainly suitable for electric rolling of battery materials in laboratory, precious gold materials such as gold and silver, nonferrous materials such as copper and aluminum. The rolling thickness can be adjusted and the operation is simple.

Product Features:

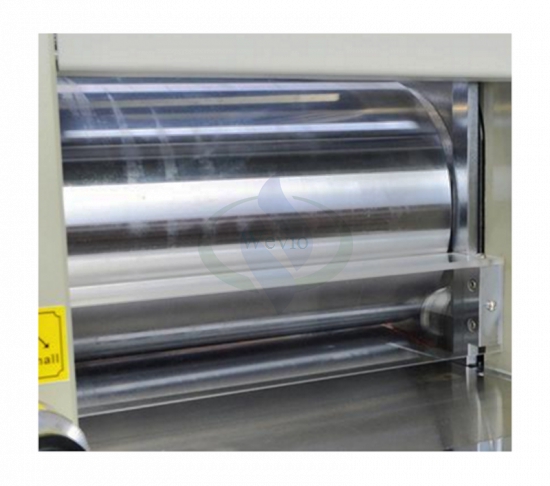

* Roll hardness is high, and the surface is plated with hard chromium, hardness can reach HRC62 and rust prevention.
* Use inclined block to adjust the press gap, good self-locking, high adjustment accuracy, digital table display accurate and intuitive.
* High rolling precision, cylindricity of roller s±2um.
* Vertical design, convenient strip material feed rolling.
* Sheet thickness, digital display speed, accurate adjustment, exquisite appearance.
* Electric rolling, forming automatic, reversible operation.
* Small size, easy operation, flexible and fast use.

Product parameter
Mode: Manual
Roller diameter: medium 96mm
Roller surface hardness: < HRC62
Roller finish: Ra0.4 or above
Sheet thickness: 0~3mm
Tablet width: 0~100mm
Dimensions: L350xW240xH350mm
Weight: 45Kg
