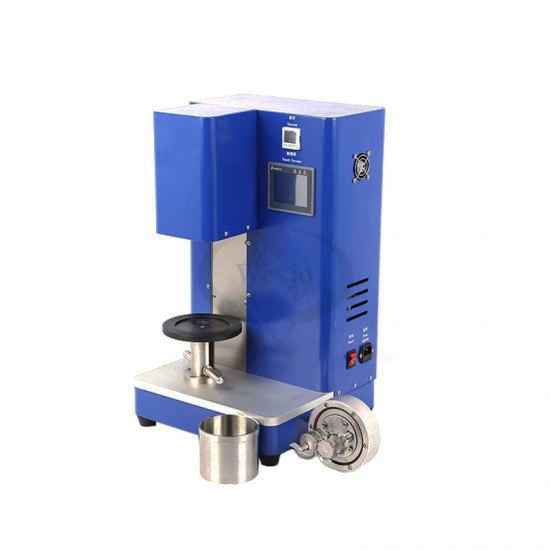

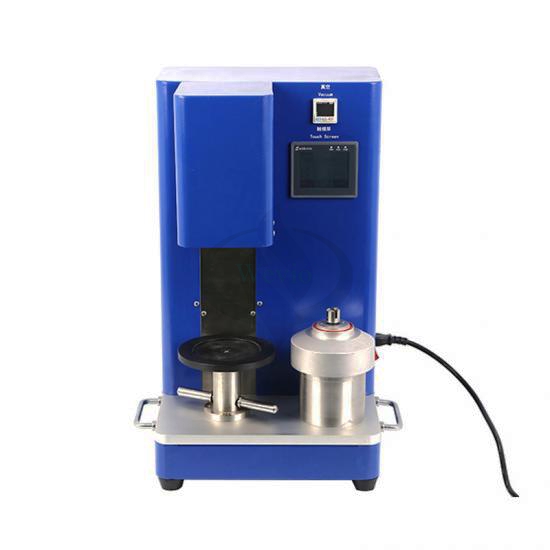

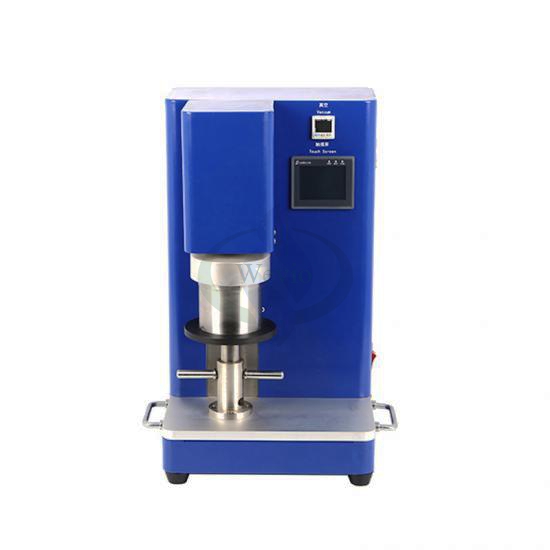

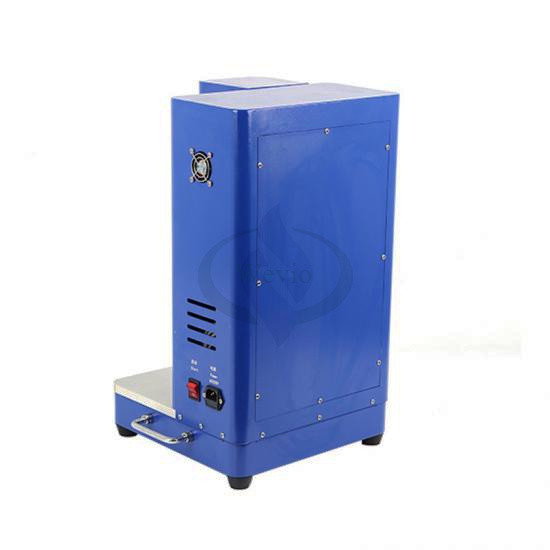

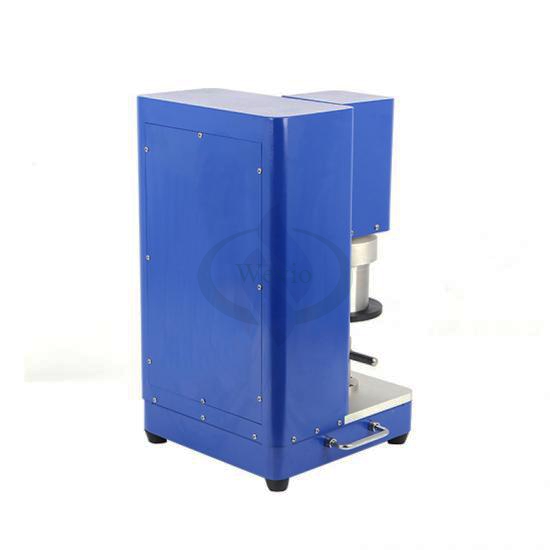

500ml Lab Planetary Vacuum Mixer Machine for Lithium Battery Slurry Mixing machine

Products Introduction:

This product is an efficient equipment integrating vacuum mixing and dispersing.

It is suitable for the mixing process of positive and negative slurry in the process of battery experiment, and the mixing of powder materials and various ceramics; Since the stirring is completed in the vacuum state, no bubbles are completely realized, so the fillability of the material and the compactness of the model are improved.

Product Features:

* Design positive and reverse mixing function, can achieve high viscosity slurry

Speed mixing, good mixing uniformity

* Vacuum environment, effectively eliminate the bubble generated by the mixing process, this machine

Comes with vacuum system

* Can carry out multi-section speed operation, can set the stirring speed and time of each section

* The equipment is equipped with dual-axis planetary mixing structure as standard, dispersing wheel + stirring paddle, and    different mixing shaft forms and combinations are configured according to the size of the mixing tank

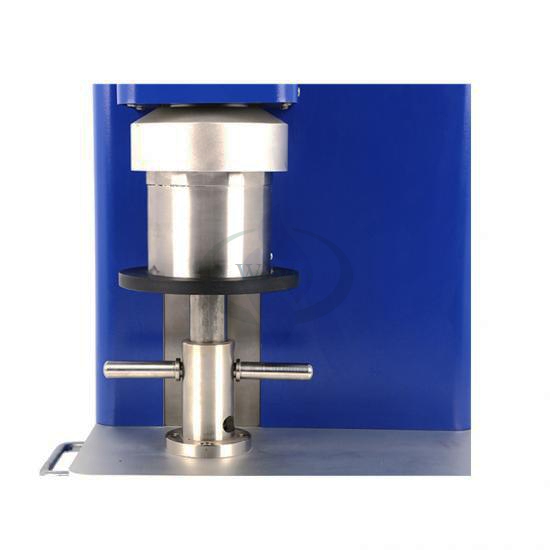

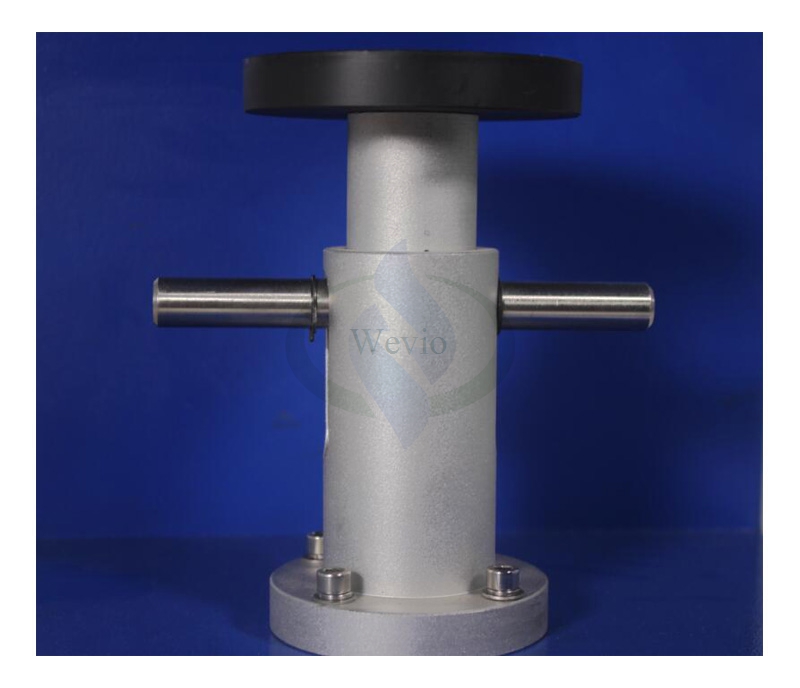

* Bracket design, easy to operate, to ensure the safety of vacuum mixing process

* Exquisite appearance, using three-dimensional geometric design, simple and beautiful

* Small size, can save space

Technical parameters:

Mixing speed:  MAX1200 RPM;
Multi-segment function:  three-segment speed can be set;
Built-in vacuum pump, vacuum degree -0.08Mpa
Accessories volume:  500ml stainless steel vacuum mixing tank
Mixing time:  0~600min adjustable
Supply voltage:  AC220V
Rated power:  200W
Machine size:  about L330m×W320mmxH570mm;
Machine weight:  about 25kg.
Optional mixing tank:  500mL/250mL/1000mL
