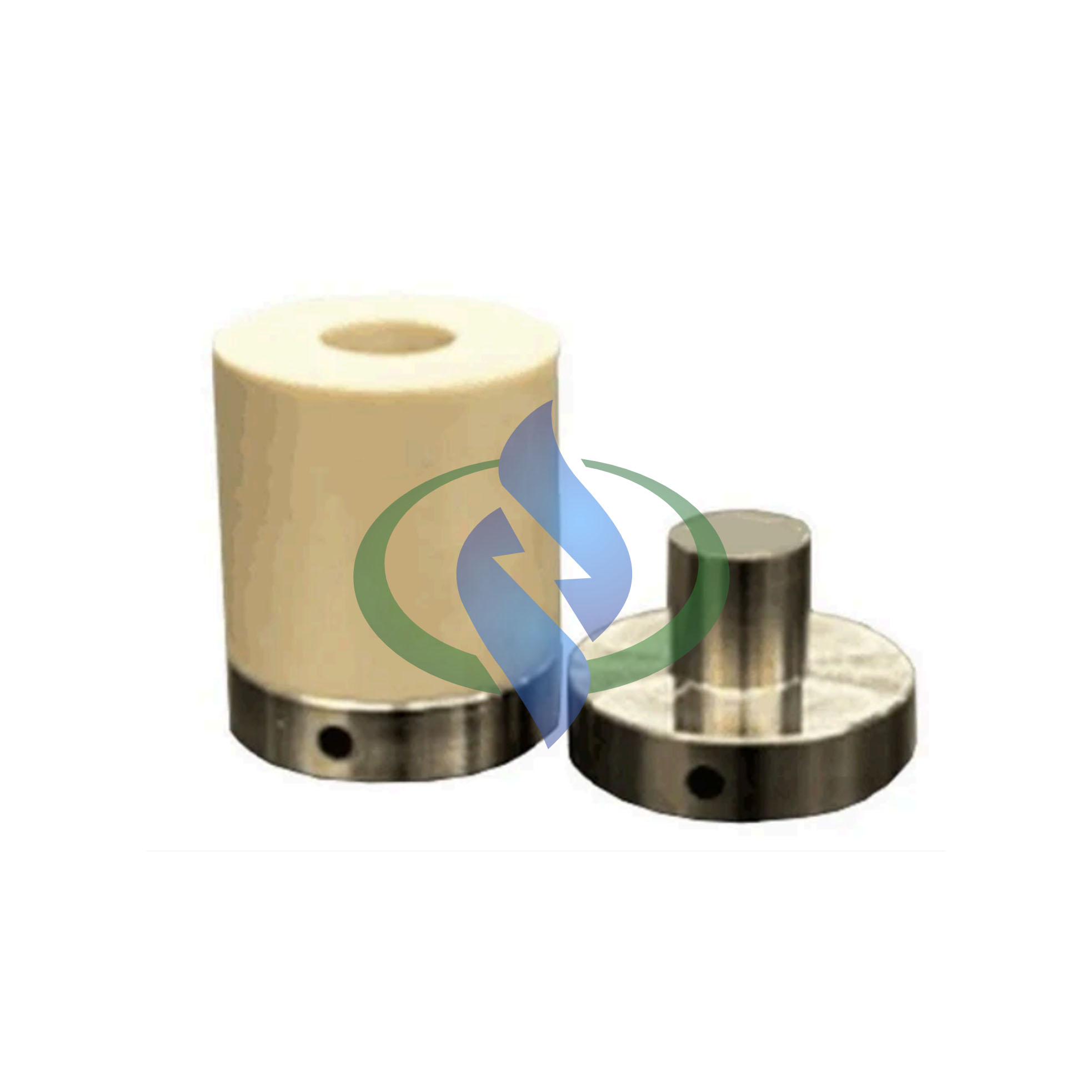

WV PEEK Pressing Die (5 - 12.75 mm ID) with Optional Pushing Rod - DieP-XX

Ø10 mm:

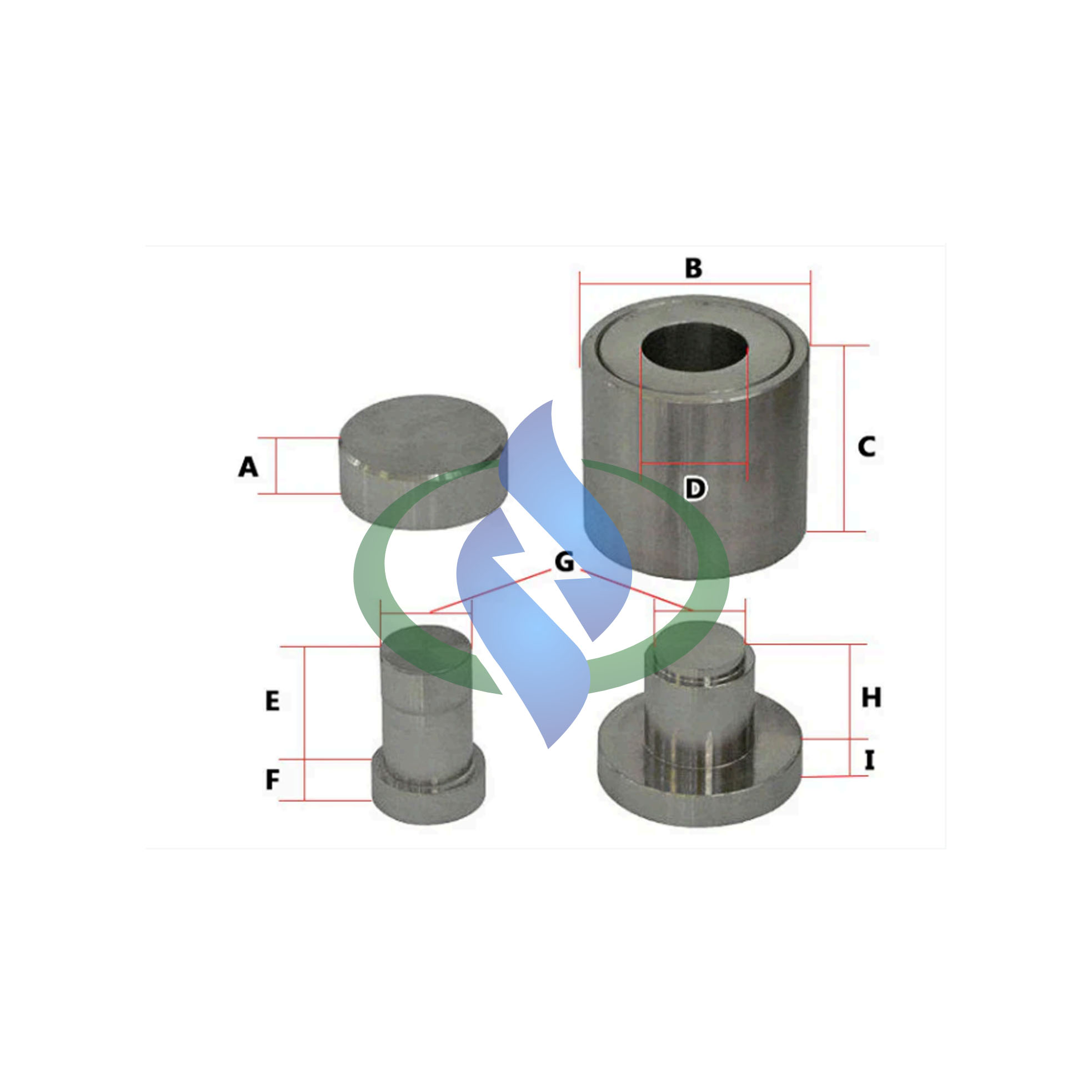

A: Support Plate Thickness: 11 mm

B: Sleeve O.D. : 40 mm

C: Die Sleeve Height: 46 mm

D. Sleeve I.D. : 10 mm ± 0.05mm

E: Top Pressing Rod Body Length: 28.5 mm

F: Top Pressing Rod Head Thickness: 6 mm

G: Pressing Rod Diameter: 10 mm

H: Bottom Pressing Rod Body Length: 24.5 mm

I: Bottom Pressing Rod Head Thickness: 8 mm

Ø12.7

A: Support Plate Thickness: 10.5 mm

B: Sleeve O.D. : Ø39.5 mm

C: Die Sleeve Height: 45.9 mm

D: Sleeve I.D. : Ø 12.7 mm ± 0.05 mm

E: Top Pressing Rod Body Length: 28.25 mm

F: Top Pressing Rod Head Thickness: 6.25 mm

G: Pressing Rod Diameter: Ø 12.7 mm ± 0.05mm

H: Bottom Pressing Rod Body Length: 23.3 mm

I: Bottom Pressing Rod Head Thickness: 8.15 mm
