8 Channels Electrochemical Workstation Potentiostat Galvanostat for Battery Test

Features

◆ Multi-channel

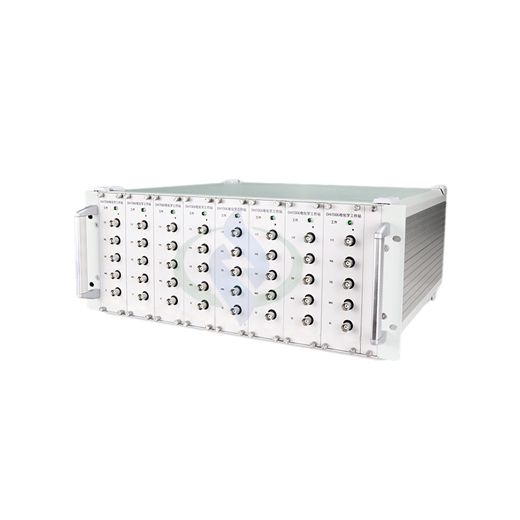

* The standard DH7006B chassis includes 8 channels with a fully floating design. Technical parameters and the number of channels are customizable.

◆ Independent Channels
* Each channel has identical technical specifications. All channels are capable of potentiostatic / galvanostatic / AC impedance testing. Each channel can perform independent electrochemical experiments, or multiple channels can be combined to conduct either independent or identical experiments simultaneously. Enables electrochemical testing of multiple working electrodes in the same electrolytic cell.

◆ High Sampling Rate
* Suitable for high scan rate cyclic voltammetry and potential/current pulse electrodeposition testing.

Key Specifications

• Number of Channels: Multi-channel

• Output Voltage Range: ±18V

• Applied/Measured Potential Range: ±10V

• Applied/Measured Current Range: ±1A

• Applied Potential Accuracy: 0.1% of full scale reading ±1mV

• Applied Potential Resolution:

  • ±100mV range: 3μV

  • ±1V range: 30μV

  • ±10V range: 300μV

• Measured Potential Accuracy: 0.1% of full scale ±1mV

• Measured Potential Resolution: 760nV

• Applied Current Accuracy: ±0.1% of reading

• Applied Current Resolution: 1/30000 of full scale

• Measured Current Accuracy: ±0.1% of reading ±1pA

• Measured Current Resolution: 8fA (on 1nA range)

• Current Ranges: 1nA to 1A, Fully Autoranging

• Potentiostat Bandwidth: 2MHz (Customizable up to 10MHz)

• Slew Rate: 10V/μs

• Rise Time: ≤500ns

• Differential Electrometer Bandwidth: ≥10MHz

• Input Impedance: ≥10¹² Ω

• Input Bias Current: ≤1pA

• iR Compensation: Positive Feedback or Dynamic iR Compensation

• Impedance Frequency Range: 10μHz - 1MHz (Customizable: 10μHz - 10MHz)

• Impedance Amplitude: 0.1mV ~ 1V RMS

• Impedance Sweep Mode: Linear or Logarithmic

• Electrode Connections: 2, 3, or 4-Electrode

• Communication Interface: Ethernet

• Power Supply Voltage: 220V

• Technical specifications (including voltage, current, AC impedance frequency range, etc.) can be customized according to customer requirements.
