Guangdong Wevio New Energy Co., Ltd
Energy-saving feedback series-aging machine-WV-4-150V100A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS

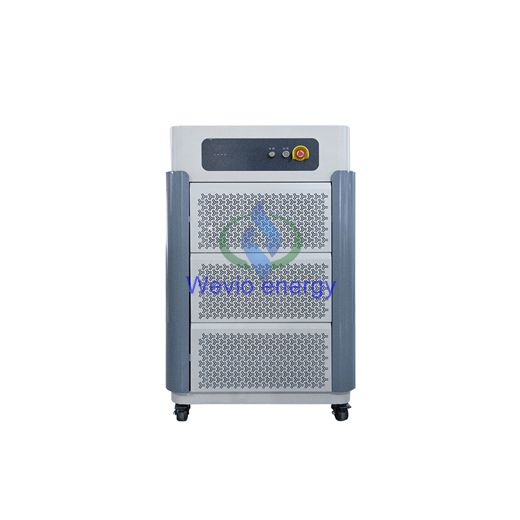

Energy-saving feedback series-aging machine-WV-4-150V100A
Power Configuration: AC 380V±10%, 50/60Hz±5Hz DC Output Current Range: -30A ~ +30A
Dimensions: (L×W×H) 820mm × 820mm × 1390mm Voltage Accuracy: ±(0.05% of Reading + 0.05% of Full Scale)
Output Power Max: 3kW/channel, 72kW/cabinet Voltage Resolution: 1mV (control & sampling)
Input Power: ≤78kW Current Accuracy: ±(0.05% of Reading + 0.05% of Full Scale)
Channels per Unit: 24 channels Current Resolution: 1mA (control & sampling)
Charge/Discharge Voltage Range: DC 0V~100V/DC 6V~100V Time Accuracy: ≤±0.1%
Constant Voltage Range: DC 2V~4.5V Charge/Discharge Modes: CC, CV, CC-CV/CC, CP (Constant Power)
Voltage Measurement Range: DC 0V~5V Charge/Discharge Stop Conditions: Voltage, Current, Time, Capacity, Temperature
Process Steps: 2000 steps
Control Method: Single point independent control
Protection Functions: Reverse polarity, Over-voltage, Over-current, Over-temperature, Under-voltage, Short-circuit
