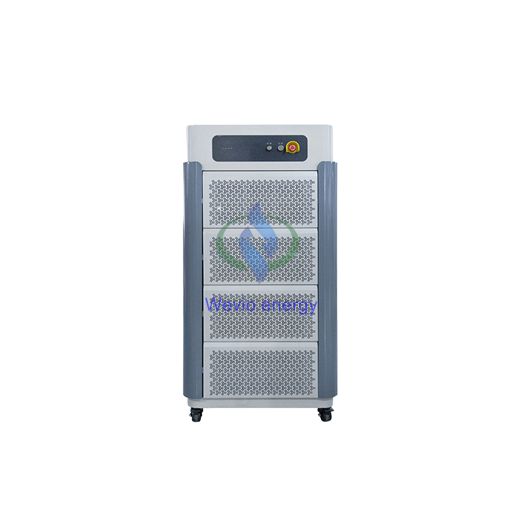

Energy-saving feedback series-aging machine-WV-4-100V200A

Power Configuration: AC 380V±10%, 50/60Hz±5Hz                        DC Output Current Range: -200A ~ +200A
Dimensions: (L×W×H) 820mm × 820mm × 1720mm                        Voltage Accuracy: ±(0.05% of Reading + 0.05% of Full Scale)
Output Power Max: 20kW/channel, 80kW/cabinet                            Current Accuracy: ±(0.05% of Reading + 0.05% of Full Scale)
Input Power: ≤87kW                                                                         Voltage Resolution: 1mV (control & sampling)
Channels per Unit: 4 channels                                                         Current Resolution: 1mA (control & sampling)
Charge/Discharge Voltage Range: DC 0V~100V/DC 6V~100V       Time Accuracy: ≤±0.1%
Constant Voltage Range: DC 2V~4.5V                                            Charge/Discharge Modes: CC, CV, CC-CV/CC, CP (Constant Power)
Voltage Measurement Range: DC 0V~5V                                        Charge/Discharge Stop Conditions: Voltage, Current, Time, Capacity, Temperature

Process Steps: 2000 steps
Control Method: Single point independent control
Protection Functions: Reverse polarity, Over-voltage, Over-current, Over-temperature, Under-voltage, Short-circuit
