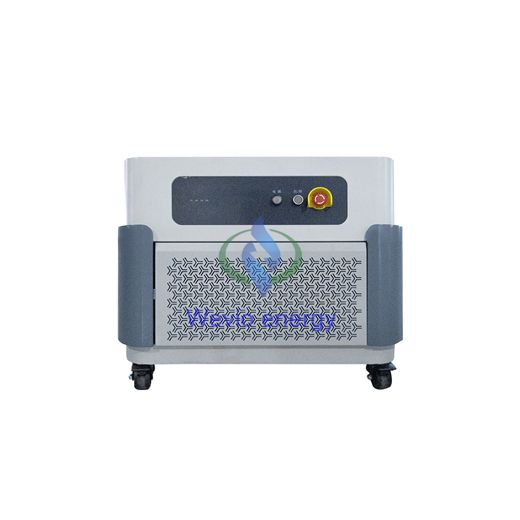

Energy-saving feedback series-aging machine-WV-4-30V20A

Power Configuration: AC 380V±10%, 50/60Hz±5Hz          Voltage Measurement Range: DC 0V~5V

Dimensions: (L×W×H) 820mm × 820mm × 750mm           DC Output Current Range: -20A ~ +20A

Output Power Max: 0.6kW/channel, 2.4kW/cabinet           Voltage Accuracy: ±(0.05% of Reading + 0.05% of Full Scale)

Input Power: ≤2.6kW                                                          Voltage Resolution: 1mV (control & sampling)

Channels per Unit: 4 channels                                           Current Accuracy: ±(0.05% of Reading + 0.05% of Full Scale)

Charge Voltage Range: DC 0V~30V                                 Current Resolution: 1mA (control & sampling)

Discharge Voltage Range: DC 6V~30V                             Time Accuracy: ≤±0.1%

Constant Voltage Range: DC 2V~4.5V                              Charge/Discharge Modes: CC, CV, CC-CV/CC, CP (Constant Power)

Charge/Discharge Stop Conditions: Voltage, Current, Time, Capacity, Temperature

Process Steps: 2000 steps

Control Method: Single point independent control

Protection Functions: Reverse polarity, Over-voltage, Over-current, Over-temperature, Under-voltage, Short-circuit
