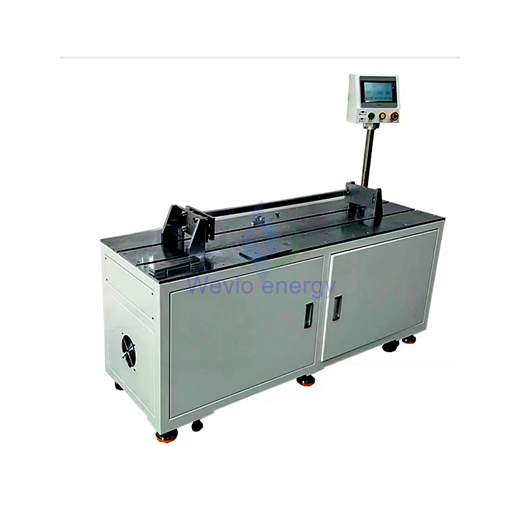

Lithium battery module stacking and pressing machine for prismatic battery

Function :
Before welding, Prismatic cell batteries are composed of multiple cells to form battery packs of different sizes.
The gaps between the cells need to be as compact as possible to make the battery pack stable.
The stacking and compressing machine can be used to achieve the fit.
The two sides of the prismatic battery cells are clamped by two flat plates.
 After clamping firmly, the extrusion force is applied until the cells fit together.

Power supply: AC220V±10%, 50HZ;
Power consumption: <500W
Compressed air: 0.5~0.8Mpa
Maximum extrusion stroke: 1200mm (customizable)
Maximum output pressure: 4000N, adjustable and customizable.
Maximum equipment size (L*W*H): 1850*550*400mm
Total equipment weight: 260KG
Equipment operating environment requirements
Working temperature range: 25℃±5℃
Humidity: <85%
Site: No pollution and strong electromagnetic interference
