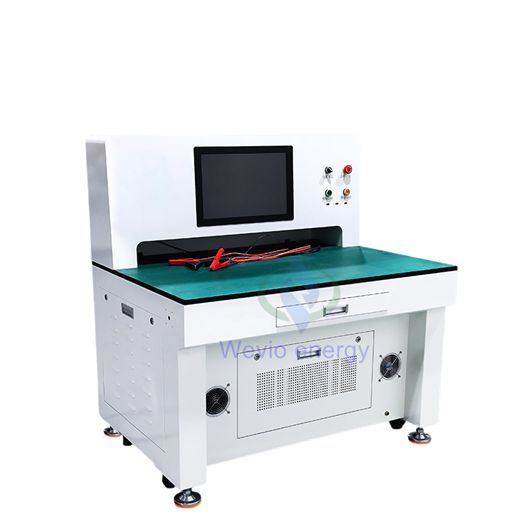

Lithium battery assembly production equipment for comprehensive testing

Lithium battery assembly production equipment for comprehensive testing

Voltage
- Maximum Range: 110 V
- Measurement Accuracy: ±0.01 V
Discharge Current
- Maximum Range: 300 A
- Measurement Accuracy: ±0.01 A
Charge Current
- Maximum Range: 15 A
- Measurement Accuracy: ±0.01 A
AC Internal Resistance
- Maximum Range: 2000 Ω
- Measurement Accuracy: 0.1 MΩ
DC Internal Resistance
- Maximum Range 5000: MΩ
- Measurement Accuracy: ±0.05 mΩ
Overcurrent Protection Current: 10-300 A
Short Circuit Resistance: 60-80 MΩ
Barcode Function: 3-30 bit
Input Power: 1800 W
Maximum Load Power: 33 KW
