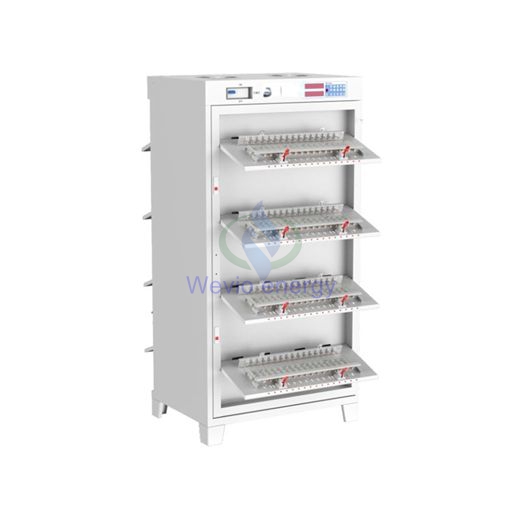

Energy-saving feedback series-capacity cabinet grading machine for cylindrical cell 128 channels 30A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for cylindrical cell 128 channels 30A
Energy-saving feedback series-capacity cabinet grading machine for cylindrical cell 128 channels 30A
Specification
Power Supply
3-phase 5-wire AC380V ±10% / 50Hz
Equipment Dimensions
L900 × W860 × H1840 mm
Operating Power Consumption
≤ 24 kW
Number of Channels
128 channels (full unit)
Battery Specification
Diameter: 18-32mm; Length: 65-180mm
Diameter: 32-60mm; Length: 80-160mm
Charge/Discharge Voltage Range
Charge: DC 0mV ~ 4.5V
Discharge: DC 2V ~ 4.5V
Constant Voltage (CV) Range
DC 2V ~ 4.5V
Voltage Measurement Range
DC 0V ~ 5V
Charge/Discharge Current Range
60mA ~ 30A
Voltage Measurement Accuracy
±(0.5‰ reading + 0.5‰ full scale)
Voltage Control/Resolution
0.1 mV
Current Measurement Accuracy
±(0.5‰ reading + 0.5‰ full scale)
Current Control/Resolution
1 mA
Time Accuracy
≤ ±0.1%
Charge/Discharge Modes
CC, CV, CC-CV (Charge), CP, CR
(Constant Current, Constant Voltage, Constant Current-Constant Voltage, Constant Power, Constant Resistance)
Charge Termination
Voltage, Current, Time, Capacity, -ΔV
Discharge Termination
Voltage, Time, Capacity
Process Setup
Max. 64 steps & 256 cycles
Control Method
PC-controlled operation
Full cabinet control
With scanning system
Protection Functions
Over/Under Voltage, Over/Under Current, Over Capacity, Power Failure Protection, Data Breakpoint Recovery
