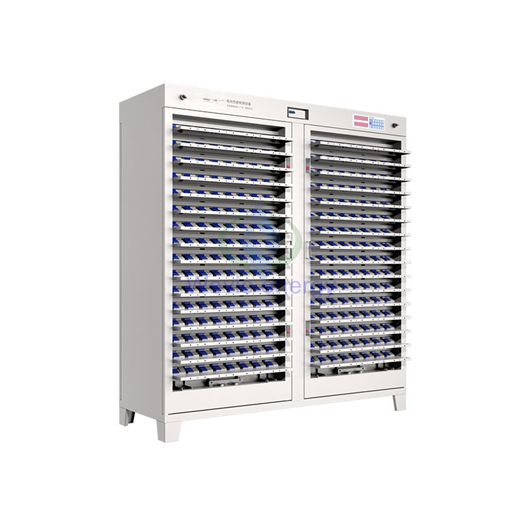

Energy-saving feedback series-capacity cabinet grading machine for pouch cell 512 channels 3A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for pouch cell 512 channels 3A
Energy-saving feedback series-capacity cabinet grading machine for pouch cell 512 channels 3A
Specification
Power Supply
3-phase 5-wire system AC380V ±10% / 50Hz
Equipment Dimensions
L1684 x W756 x H1840 mm
Operating Power Consumption
≤ 9.6 kW
Number of Channels
512 channels (full unit)
Battery Specification
Tab < 65mm, Width < Fixture Spacing
Charge/Discharge Voltage Range
DC 0mV ~ 4.5V (Charge) / DC 2V ~ 4.5V (Discharge)
Constant Voltage (CV) Range
DC 2V ~ 4.5V
Voltage Measurement Range
DC 0V ~ 5V
Charge/Discharge Current Range
10mA ~ 3A
Voltage Measurement & Control Accuracy
±(0.5‰ of reading + 0.5‰ of full scale)
Voltage Control/Sampling Resolution
1mV
Current Measurement & Control Accuracy
±(0.5‰ of reading + 0.5‰ of full scale)
Current Control/Sampling Resolution
1mA
Time Measurement & Control Accuracy
≤ ±0.1%
Charge/Discharge Modes
Constant Current (CC), Constant Voltage (CV), CC-CV (Charge), Constant Power (CP), Constant Resistance (CR)
Charge Termination Conditions
Voltage, Current, Time, Capacity, -ΔV (-Delta V)
Discharge Termination Conditions
Voltage, Time, Capacity
Process Setup
Up to 64 step parameters, 256 cycles
Control Method
PC-controlled operation, Whole cabinet control, With scanning system
Protection Functions
Over Voltage, Under Voltage, Over Current, Under Current, Over Capacity Protection, Power-off Protection, Data Breakpoint Recovery
