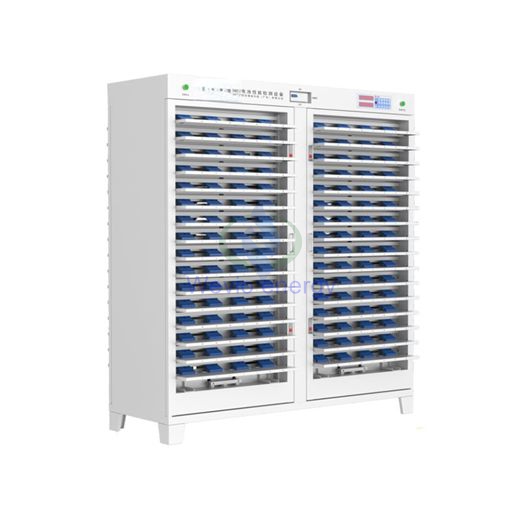

Energy-saving feedback series-capacity cabinet grading machine for pouch cell 256 channels 12A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for pouch cell 256 channels 12A
Energy-saving feedback series-capacity cabinet grading machine for pouch cell 256 channels 12A
Specification
Power Supply
3-phase 5-wire AC380V ±10% / 50Hz
Dimensions (L x W x H)
1684 mm x 877 mm x 1840 mm
Operating Power Consumption
≤ 19.2 kW
Number of Channels
256 channels (whole machine)
Battery Specifications
Thickness: 5-16 mm
Length: 0-200 mm
Width: 30-160 mm
Tab Center Distance: 20-130 mm
Charge/Discharge Voltage Range
Charge: DC 0mV ~ 4.5V
Discharge: DC 2V ~ 4.5V
Constant Voltage Range
DC 2V ~ 4.5V
Voltage Measurement Range
DC 0V ~ 5V
Charge/Discharge Current Range
20 mA ~ 12 A
Voltage Measurement Accuracy
±(0.05% of reading + 0.05% of full scale)
Voltage Control/Sampling Resolution
0.1 mV
Current Measurement Accuracy
±(0.05% of reading + 0.05% of full scale)
Current Control/Sampling Resolution
1 mA
Time Measurement Accuracy
≤ ±0.1%
Charge/Discharge Modes
Constant Current (CC), Constant Voltage (CV), CC-CV, Constant Power (CP), Constant Resistance (CR)
Charge Termination Conditions
Voltage, Current, Time, Capacity, -ΔV
Discharge Termination Conditions
Voltage, Time, Capacity
Process Setup
Up to 64 step parameters & 256 cycles
Control Method
PC-controlled operation, whole cabinet control, with scanning system
Protection Functions
Over Voltage, Under Voltage, Over Current, Under Current, Over Capacity Protection, Power Failure Protection, Data Breakpoint Recovery
