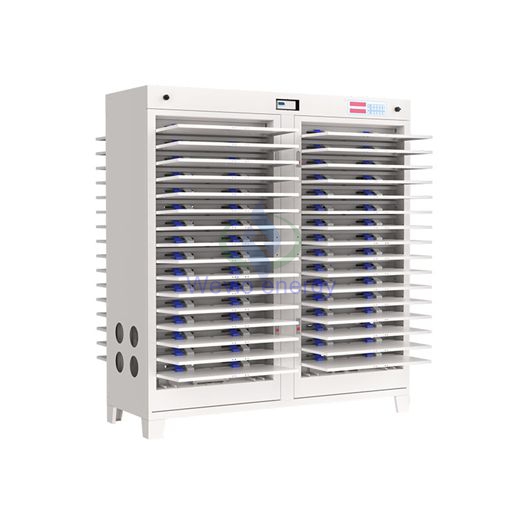

Energy-saving feedback series-capacity cabinet grading machine for pouch cell 128 channels 30A
Item No.: WV-128-30A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for pouch cell 128 channels 30A
Energy-saving feedback series-capacity cabinet grading machine for pouch cell 128 channels 30A
Specification
| Power Supply | 3-phase 5-wire AC 380V ±10% / 50Hz |
| Dimensions (L×W×H) | 1684 × 1120 × 1840 mm |
| Operating Power | ≤ 24 kW |
| Channels | 128 channels (full machine) |
| Battery Specs |
Thickness: 5-16 mm Length: 0-300 mm Width: 50-280 mm Tab Center Distance: 20-200 mm |
| Charge/Discharge Voltage | DC 0 mV ~ 4.5V / DC 2V ~ 4.5V |
| Constant Voltage Range | DC 2V ~ 4.5V |
| Voltage Measurement Range | DC 0V ~ 5V |
| Charge/Discharge Current | 60 mA ~ 30 A |
| Voltage Accuracy | ±(0.5‰ of reading + 0.5‰ of full scale) |
| Voltage Resolution | 0.1 mV |
| Current Accuracy | ±(0.5‰ of reading + 0.5‰ of full scale) |
| Current Resolution | 1 mA |
| Time Accuracy | ≤ ±0.1% |
| Charge/Discharge Modes | CC (Constant Current), CV (Constant Voltage), CC-CV, CP (Constant Power), CR (Constant Resistance) |
| Charge Cut-off Conditions | Voltage, Current, Time, Capacity, -ΔV |
| Discharge Cut-off Conditions | Voltage, Time, Capacity |
| Process Settings | Up to 64 steps & 256 cycles |
| Control Method | PC-controlled operation, whole-cabinet control, with scanning system |
| Protection Functions | Over-voltage, Under-voltage, Over-current, Under-current, Over-capacity, Power-off Protection, Data Breakpoint Recovery |
