Guangdong Wevio New Energy Co., Ltd

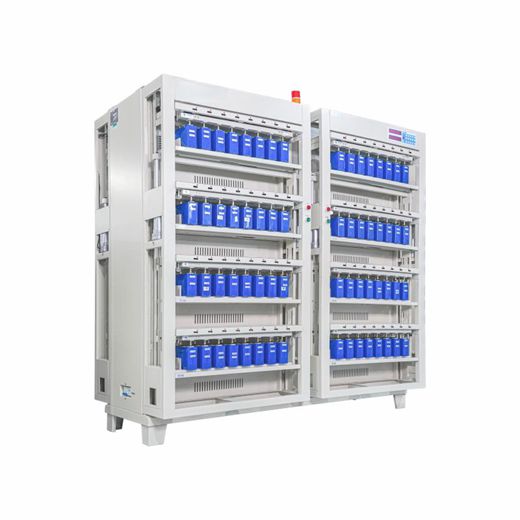

Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 128 channels 40A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 128 channels 40A
Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 128 channels 40A
Specification:
Power Configuration
3-phase 5-wire system AC380V ±10% / 50Hz
Dimensions (L×W×H)
1880 × 1030 × 1843 mm
Operating Power
≤32 kW
Channels
128 channels (full unit)
Battery Specifications
Length: 65-210 mm; Thickness: 15-70 mm; Height: 80-230 mm; Tab: 40-150 mm
Charge/Discharge Voltage
DC 0mV ~ 4.5V / DC 2V ~ 4.5V
Constant Voltage Range
DC 2V ~ 4.5V
Voltage Measurement
DC 0V ~ 5V
Charge/Discharge Current
80 mA ~ 40 A
Voltage Accuracy
±(0.05% of reading + 0.05% of full scale)
Voltage Resolution
0.1 mV
Current Accuracy
±(0.05% of reading + 0.05% of full scale)
Current Resolution
1 mA
Time Accuracy
≤ ±0.1%
Charge/Discharge Modes
CC, CV, CC-CV/CC, CP, CR (Constant Current, Constant Voltage, CC-CV/CC, Constant Power, Constant Resistance)
Charge Stop Conditions
Voltage, Current, Time, Capacity, -ΔV
Discharge Stop Conditions
Voltage, Time, Capacity
Process Settings
Up to 64 steps & 256 cycles
Control Method
PC-controlled operation; Cabinet-level control; With scanning system
Protection Functions
Over-voltage, Under-voltage, Over-current, Under-current, Over-capacity protection, Power failure protection, Data breakpoint recovery
