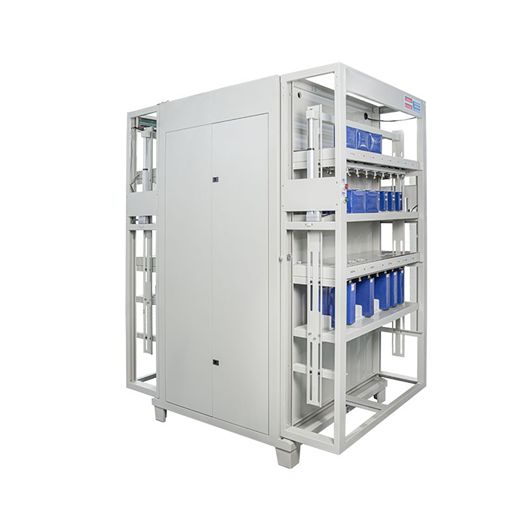

Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 32 channels 200A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 32 channels 200A
Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 32 channels 200A
Specificarion
| Power Supply | 3-phase 5-wire AC380±10%/50Hz |
| Equipment Dimensions | 1120 × 1647 × 1966 mm (L×W×H) |
| Operating Power | ≤40 KW |
| Channels | 32 channels (whole machine) |
|
Battery Specifications |
|
| - Terminal Distance | 50-170 mm |
| - Length Range | 90-220 mm |
| - Thickness Range | 15-100 mm |
| - Height Range | 80-310 mm |
|
Electrical Parameters |
|
| Charge/Discharge Voltage | DC 0 mV~4.5V / DC 2V~4.5V |
| Constant Voltage Range | DC 2~4.5V |
| Voltage Measurement Range | DC 0V~5V |
| Charge/Discharge Current | 400 mA~200 A |
|
Precision & Resolution |
|
| Voltage Accuracy | ±(0.05% rdg + 0.05% FS) |
| Voltage Resolution | 0.1 mV |
| Current Accuracy | ±(0.05% rdg + 0.05% FS) |
| Current Resolution | 1 mA |
| Time Accuracy | ≤±0.1% |
|
Operating Modes |
|
| Charge/Discharge Modes | CC, CV, CC-CV, CP, CR |
| Charge Stop Conditions | Voltage, Current, Time, Capacity, -ΔV |
| Discharge Stop Conditions | Voltage, Time, Capacity |
|
Control System |
|
| Process Setup | Up to 64 steps & 256 cycles |
| Control Method | PC-controlled, cabinet-integrated, with scan system |
|
Protections
|
OV/UV, OC/UC, Over-Capacity, Power Loss, Data Breakpoint Recovery |
Abbreviations Key:
-
CC: Constant Current
-
CV: Constant Voltage
-
CP: Constant Power
-
CR: Constant Resistance
-
OV/UV: Over/Under Voltage
-
OC/UC: Over/Under Current
-
FS: Full Scale
-
rdg: Reading
-
-ΔV: Negative Delta Voltage (battery charging termination method)
