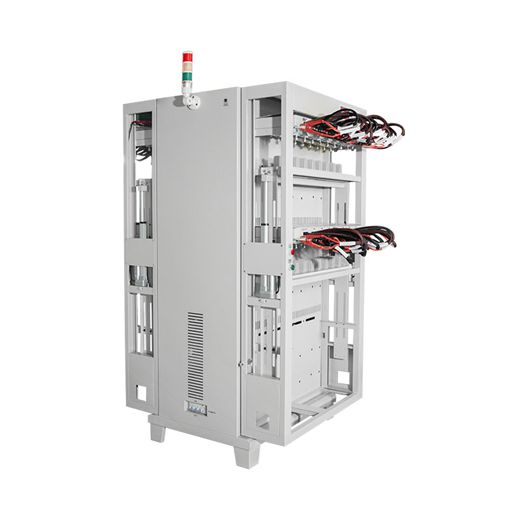

Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 32 channels 100A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS
Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 32 channels 100A
Energy-saving feedback series-capacity cabinet grading machine for prismatic cell 32 channels 100A
Specification：
| Power Supply | 3-phase 5-wire AC380±10%/50Hz |
|
Equipment Dimensions |
920 × 1102 × 1843 mm (L×W×H) |
|
Operating Power |
≤20 KW |
|
Channels |
32 channels (whole machine) |
|
Battery Specifications |
|
| - Length Range | 80-220 mm |
| - Thickness Range | 20-70 mm |
| - Height Range | 80-220 mm |
| - Tab Distance Range | 60-150 mm |
|
Electrical Parameters |
|
| Charge/Discharge Voltage | DC 0 mV~4.5V / DC 2V~4.5V |
| Constant Voltage Range | DC 2~4.5V |
| Voltage Measurement Range | DC 0V~5V |
| Charge/Discharge Current | 200 mA~100 A |
|
Precision & Resolution |
|
| Voltage Accuracy | ±(0.05% rdg + 0.05% FS) |
| Voltage Resolution | 0.1 mV |
| Current Accuracy | ±(0.05% rdg + 0.05% FS) |
| Current Resolution | 1 mA |
| Time Accuracy | ≤±0.1% |
|
Operating Modes |
|
| Charge/Discharge Modes | CC, CV, CC-CV, CP, CR |
| Charge Stop Conditions | Voltage, Current, Time, Capacity, -ΔV |
| Discharge Stop Conditions | Voltage, Time, Capacity |
|
Control System |
|
| Process Setup | Up to 64 steps & 256 cycles |
| Control Method | PC-controlled, cabinet-integrated, with scan system |
|
Protections |
OV/UV, OC/UC, Over-Capacity, Power Loss, Data Recovery |
Key Abbreviations:
-
CC: Constant Current
-
CV: Constant Voltage
-
CP: Constant Power
-
CR: Constant Resistance
-
OV/UV: Over/Under Voltage
-
OC/UC: Over/Under Current
-
FS: Full Scale
-
rdg: Reading
