Energy-saving feedback series-capacity cabinet grading machine for Prismatic cell 16 channels 300A
Manufacture: Guangdong, China
Delivery Time: 7-20days
Customizable: Yes
Products
Products DETAILS

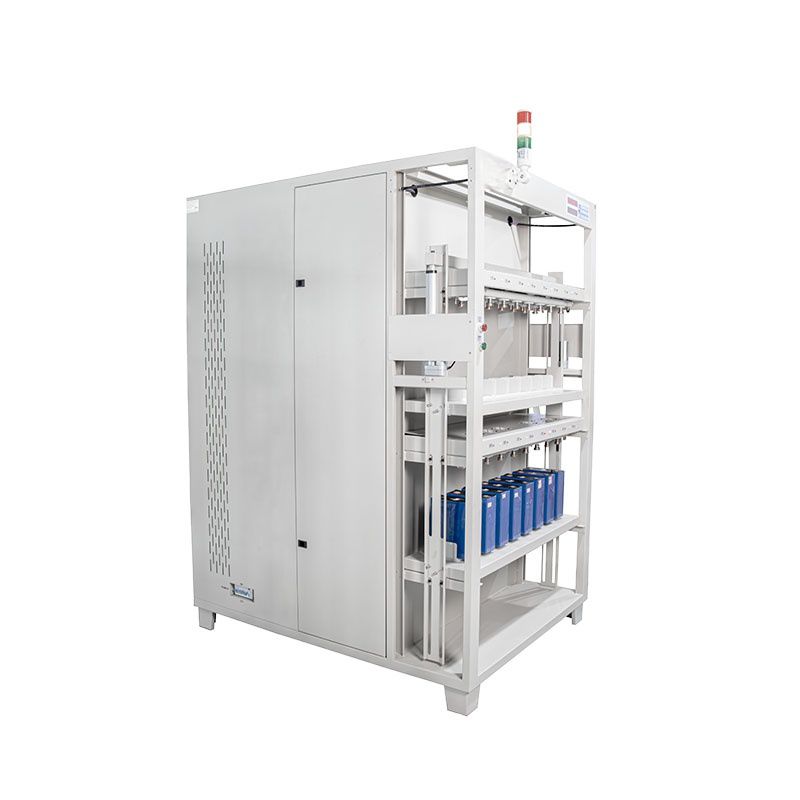

Energy-saving feedback series-capacity cabinet grading machine for Prismatic cell 16 channels 300A
Energy-saving feedback series-capacity cabinet grading machine for Prismatic cell 16 channels 300A
Specification：
| Configuration | |
| Power Supply | 3-phase 5-wire system AC380±10% / 50Hz |
| Equipment Dimensions (LxWxH) | 1120 x 1420 x 1909 mm |
| Operating Power Consumption | ≤ 30 KW |
| Number of Channels | 16 channels (whole machine) |
|
Battery Specification |
|
| Terminal Distance Range | 50 - 170 mm |
| Length Range | 90 - 220 mm |
| Thickness Range | 15 - 100 mm |
| Height Range | 80 - 310 mm |
|
Electrical Ranges |
|
| Charge/Discharge Voltage Range | DC 0 mV ~ 4.5 V / DC 2 V ~ 4.5 V |
| Constant Voltage Range | DC 2 ~ 4.5 V |
| Voltage Measurement Range | DC 0 V ~ 5 V |
| Charge/Discharge Current Range | 600 mA ~ 300 A |
|
Precision & Resolution |
|
| Voltage Meas./Ctrl. Accuracy | ±(0.05% of Reading + 0.05% of Full Scale) |
| Voltage Ctrl./Sampling Resolution | 0.1 mV |
| Current Meas./Ctrl. Accuracy | ±(0.05% of Reading + 0.05% of Full Scale) |
| Current Ctrl./Sampling Resolution | 1 mA |
| Time Meas./Ctrl. Accuracy | ≤ ±0.1% |
|
Operating Modes |
|
| Charge/Discharge Modes | Constant Current (CC), Constant Voltage (CV), CC-CV / Constant Power (CP), Constant Resistance (CR) |
| Charge Termination Conditions | Voltage, Current, Time, Capacity, -ΔV |
| Discharge Termination Conditions | Voltage, Time, Capacity |
|
Process Control |
|
| Process Setup | Up to 64 step parameters & 256 cycles |
| Control Method | PC-controlled operation, integrated cabinet control, with scanning system |
|
Protection Functions |
Over Voltage, Under Voltage, Over Current, Under Current, Over Capacity Protection, Power Failure Protection, Data Breakpoint Recovery |
