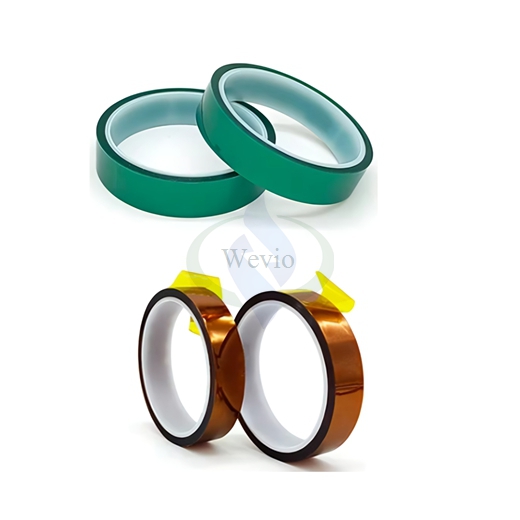

High Temperature Tape-For Battery Electrode Tab

Item No.: WV-JD-HT

Manufacture: Guangdong, China

Delivery Time: 7-20days

Customizable: Yes

Send Email:

Products DETAILS

High Temperature Tape-For Battery Electrode Tab



High Temperature Tape-For Battery Electrode Tab


Description (Scope):
Single-sided amber tape using polyimide as the backing, coated with special silicone adhesive. The backing is a biaxially stretched PI film with high stability. Coated with imported adhesive, providing good adhesion. It can withstand 260°C for 20 minutes and leaves no residue upon removal.
Performance Specifications
Item Unit Tolerance Range Typical Value Test Method
Backing Thickness mm 0.0125 ± 0.005 0.0125 GB/T7125
Adhesive Thickness mm 0.0175 ± 0.005 0.0175 GB/T7125
Total Tape Thickness mm 0.03 ± 0.01 0.03
Length M 33M 33 /
Width mm 2-500 ± 0.3 2-500
Adhesion (to Steel) N/25mm ≥ 4.5 4.5 GB/T2792
Holding Power H/25mm ≥ 72H 72 GB/T4851
Initial Tack Ball No. ≥ 3# ball 3 GB/T4852
Tensile Strength (MD) MPa ≥ 130 135 GB/T30776
Tensile Strength (TD) MPa ≥ 100 105 GB/T30776
Elongation at Break (MD) % ≥ 35 40 GB/T30776
Elongation at Break (TD) % ≥ 35 35 GB/T30776
Dielectric Strength KV ≥ 3 3 /
Temperature Resistance ℃ ≥ 260 260 Oven
*MD = Machine Direction , TD = Transverse Direction
