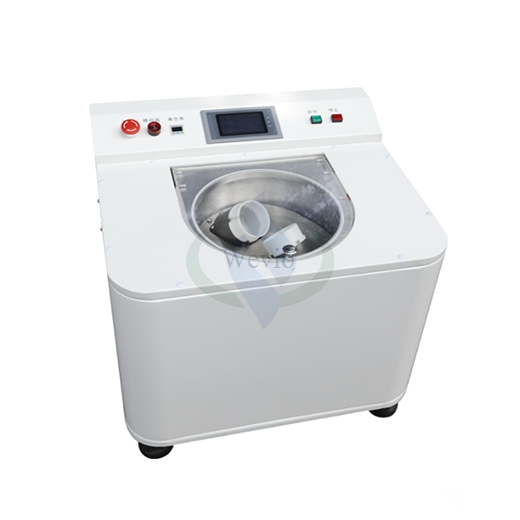

500mm 1L 2L 5L Lithium Battery Laboratory Centrifugal Mixing Slurry Degassing Machine

500mm 1L 2L 5L Lithium Battery Laboratory Centrifugal Mixing Slurry Degassing Machine

Planetary stirring degassing is to put two or more materials into a cup, and the forced convection generated by the revolution and rotation of the cup mixes the materials. The gas in the materials is vacuumed away during the process of making the particles of the mixed materials uniform.

Features
1. Spindle: Made of Swiss ASSAB S136 mirror mold steel, after multiple heat treatments, the overall hardness reaches HRC62. The shaft is ground as a whole. The sealing surface is then mirror-polished to achieve a surface roughness of 0.02um mirror effect, with an extremely low friction coefficient, and its own super wear resistance, which causes very little wear on the sealing ring, achieving high sealing performance with a long life.
2. Sealing ring: Made of German Bayer's super wear-resistant sealing ring, the wear resistance can reach a linear speed of 40M/S. Our equipment has a linear speed of only 4M/S at 2000 revolutions. The pressure can withstand 20KG/cm.
3. Vacuum pump: A pump with forced oil circulation lubrication after improvement using international advanced technology, which has good lubrication, low loss and long life.
4. Gear: Adopts the structure of automotive spiral bevel gear, which runs smoothly, has low noise and long life.
5. Swivel arm: Adopts an integral swing arm, all of which are made of imported aviation magnesium aluminum 7075 from the United States, ensuring the accuracy and later stability of the product. High interchangeability, the same model of machine arms can be interchanged at will, and maintenance is convenient.

Specification

1.Container capacity:300ml*2 cups

2.Optimal capacity of mixing material:10-180ml*2 cups

3.Operation mode:Human-computer interaction interface + button start

4.Revolution speed and rotation speed Revolution:100-2000RPM Rotation We provide the best fixed speed ratio according to customer materials

5.Vacuum gauge:SMC vacuum gauge Objectively and truly display the vacuum degree

6.Vacuum pump 240 liters per minute:about -99Kpa

7.Motor:Panasonic motor

8.Spindle:Swiss ASSAB S136 mirror mold steel:mirror polishing of sealing ring position

9.Seal ring :DuPont polymer graphene seal ring is super wear-resistant and maintains long-term high vacuum

10.Rotary arm:Imported from the United States Aviation magnesium aluminum 7075, overall machining center distance ±0.02, long-term stable size Modular structure, high interchangeability, very convenient maintenance.

11.Transmission: spiral bevel gear transmission, stable transmission, low noise, long life

12.Storage program: 5 storage programs (each program can be set to 5 steps)

13.Protection: door cover, fault, overload;

14.Power supply:power, voltage: single phase ≦1.5 KW; 220V
