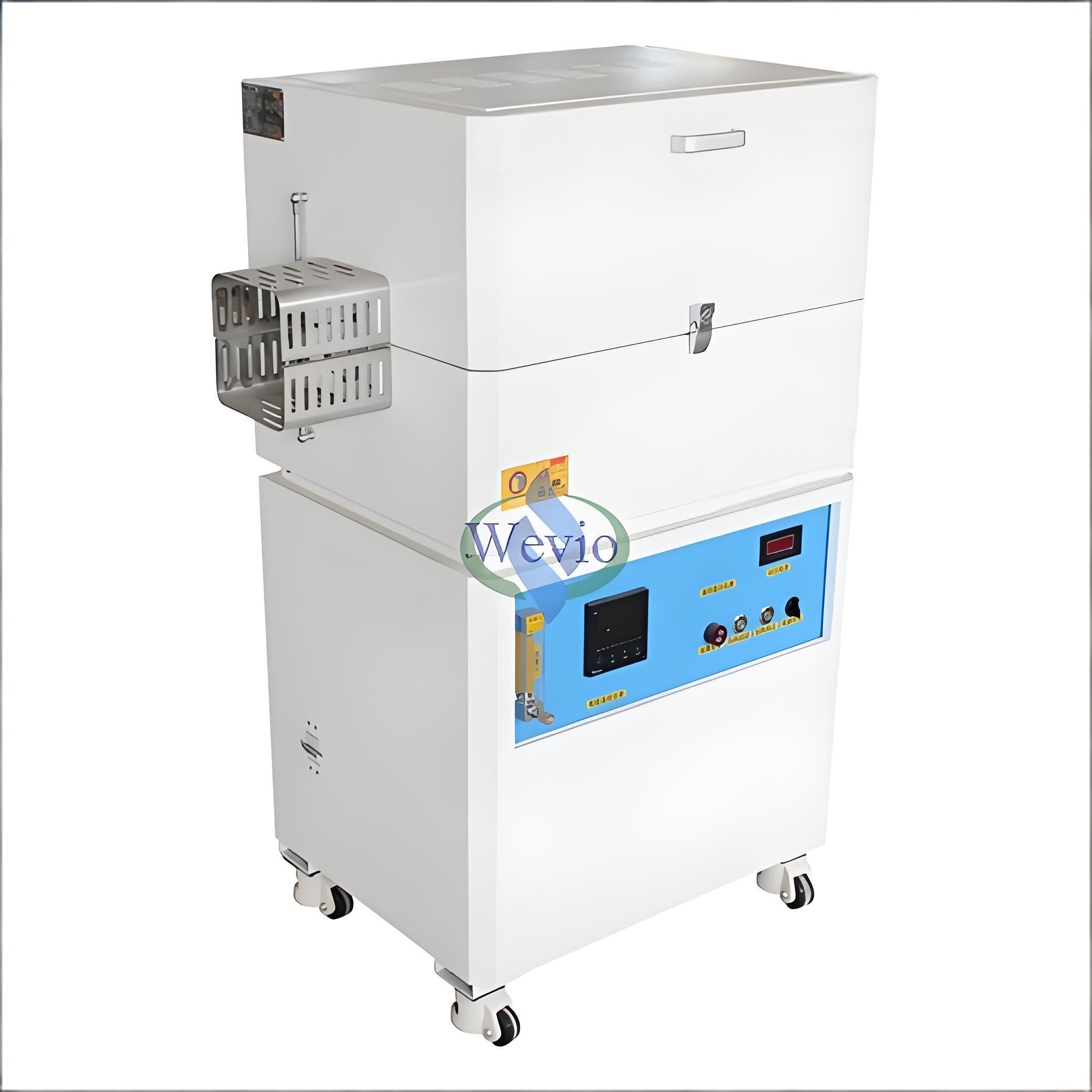

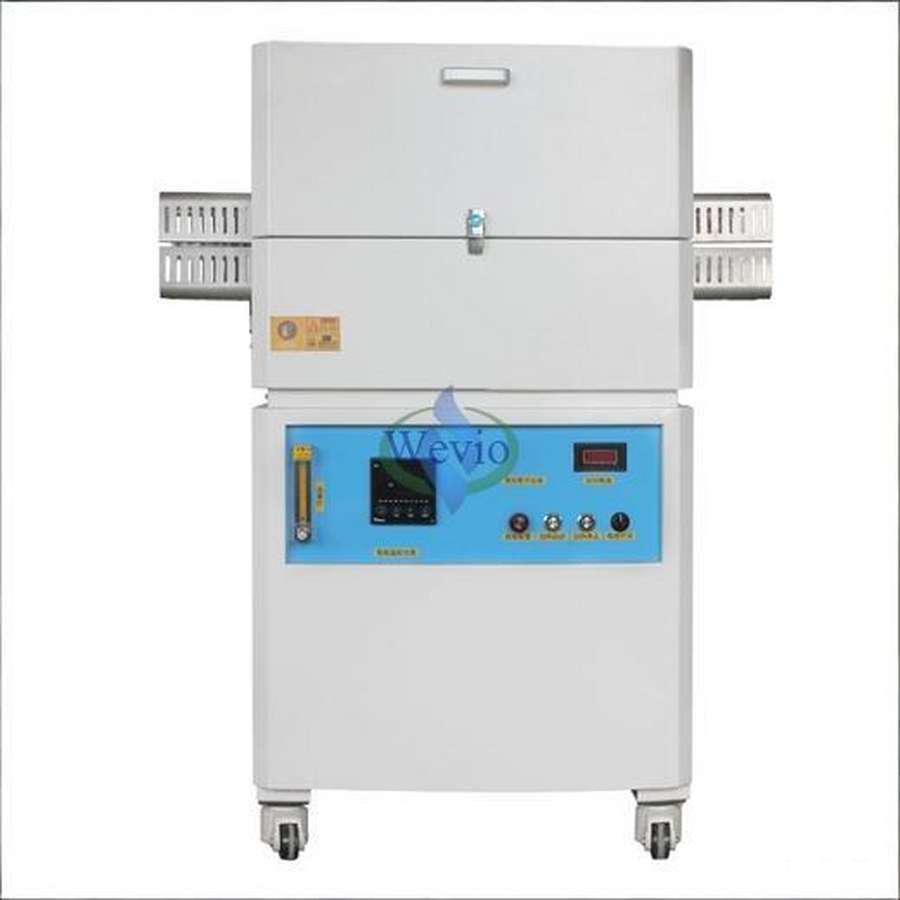

1700°C Hinged High-Temperature Tube Furnace Used for Lithium/Sodium Battery Cathode and Anode Materials

Product Description
The WVGK-17 series is a tube furnace with a maximum temperature of up to 1650°C. It is mainly designed for heat treatment of samples under vacuum or protective atmosphere. High-quality chamber materials and a stable temperature control system ensure the reliability of experimental data.

The product uses a new type of ceramic fiber as the furnace chamber material. The furnace tube is made of high-quality material, and both ends are sealed with stainless steel flanges, allowing operation under vacuum. The flanges are equipped with gas inlet and outlet ports for introducing protective gases, and a precision needle valve is used to adjust the gas flow rate.

Product Features

1. Integrated design optimizes the furnace structure and saves space.

2. The furnace chamber is made of high-purity alumina ceramic fiber, offering excellent thermal insulation and resistance to deformation at high temperatures.

3. Double-layer shell structure with an air-cooling system; the outer surface temperature remains at ambient temperature +10°C.

4. Intelligent PID controller with 30 programmable segments, enabling ramp/soak temperature profiles, adjustable heating rates, dwell time control, and automatic shutdown.

5. High temperature control accuracy: ±0.1°C below 1000°C; ±1°C above 1000°C.

6. Equipped with safety features including door-open power cut-off, over-temperature alarm, leakage protection, and over-temperature protection.

7. Optional large-screen paperless recorder for real-time temperature curve recording, with storage card support for data analysis and printing.
