Battery material powder grinding ball mill planetary ball mill laboratory ball mill small ball mill

1. Frame Material: Powder-coated carbon steel

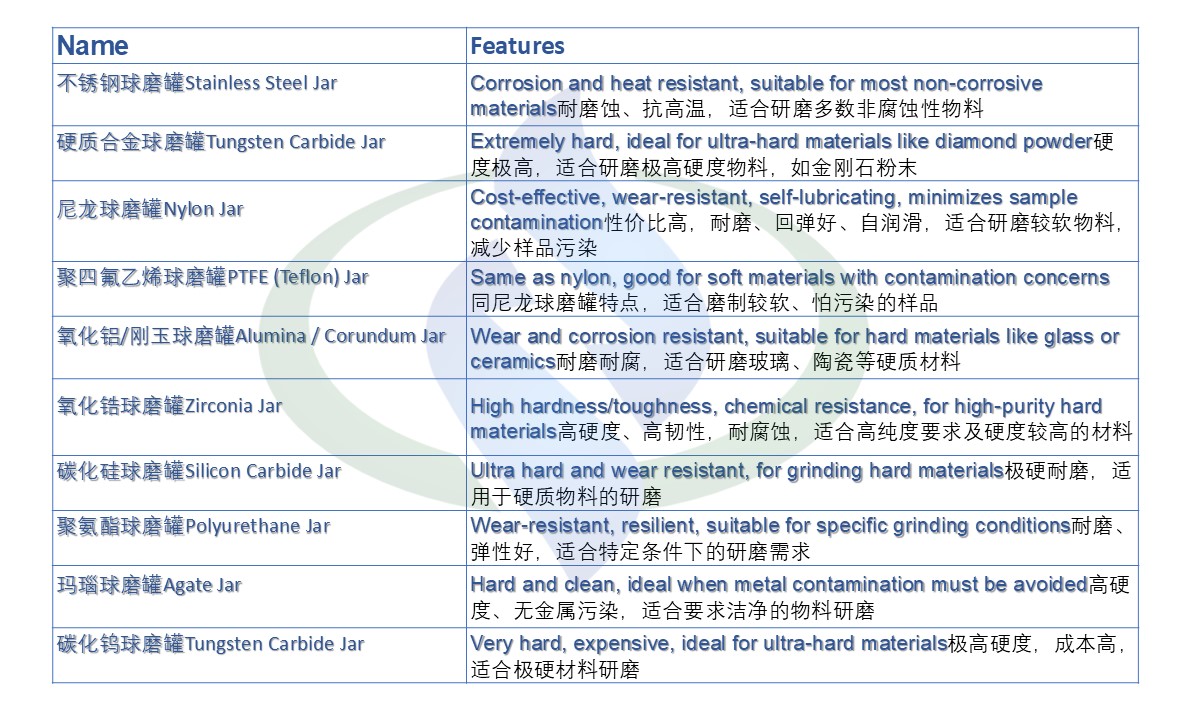

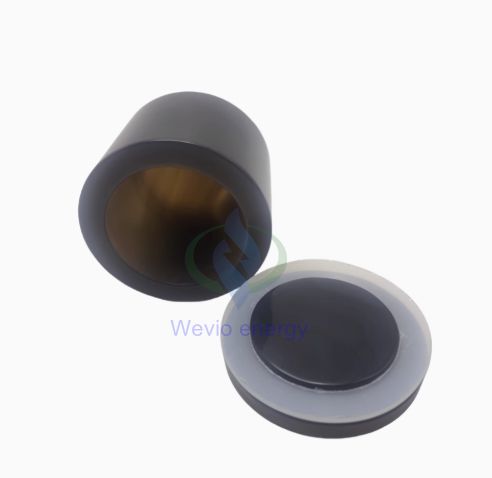

2. Grinding Jar Material: Optional stainless steel, nylon, polyurethane, PTFE, corundum, agate, zirconia, and vacuum jars

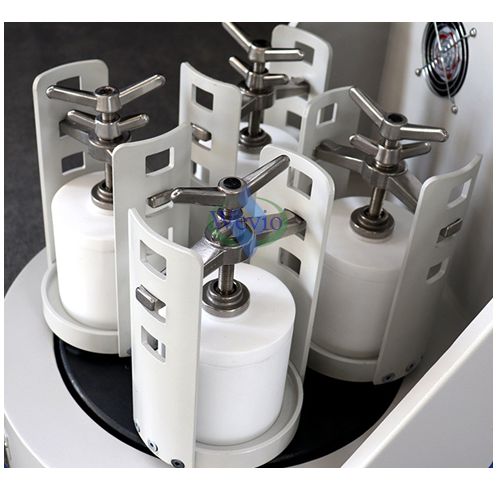

3. Grinding Jar Specifications: 50ml-1000mL * 4 jars
4. Grinding Media Material: Stainless steel, zirconia, alumina, agate
5. Maximum Loading per Jar: Material and grinding media should not exceed two-thirds of the jar volume
6. Feed Particle Size: Less than 10 mm for brittle materials, less than 3 mm for others
7. Output Particle Size: Minimum 0.1 micron (depending on material properties and process)
8. Rotation Speed: Maximum planetary rotation 35-335 r/min, self-rotation 70-670 r/min
9. Rotation Speed Ratio (Planetary: Self-rotation): 1:2
10. Transmission Method: European standard transmission wheel
11. Working Voltage: 220V/50Hz
12. Motor Power and Frequency Converter Power: 0.75 Kw
13. Working Mode: Two or four jars working simultaneously
14. Maximum Continuous Working Time: 72 hours (timer 0-3600 min)
15. Program Control: Can run forward and reverse alternately according to the set program (0-999 min), and also forward, pause, reverse, pause, forward (0-999 min) alternately, especially suitable for applications requiring cooling or intermittent operation.
16. Lubrication Method: Solid lithium-based grease lubrication, no risk of liquid oil leakage, easy maintenance
Equipment Reference Dimensions (MM): 750*470*590
