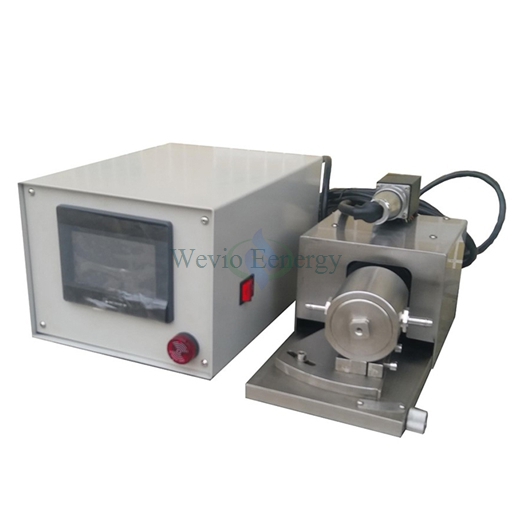

Prismatic cell and Pouch cell battery pilot line assembly line battery electrolyte injection pump machine

Technical Parameters

Power supply: voltage single-phase 220VAC±10%(110VAC can be customized)
Frequency :50Hz/60Hz
Power :200W
Injection speed :Max. 300rpm
Liquid discharge speed :Max. 500ml/min
Single stroke: 0 ~ 1.8ml, adjustable
Injection accuracy :3
Pipe interface: liquid inlet Ø6mm, liquid outlet Ø4mm
Pump body size: L220mm*W120mm*H110mm
Size of electrical box: L360mm*W240mm*H190mm
Weight: plunger pump weight: 4Kg, control box weight :2Kg, support: 10Kg
Warranty: One year warranty with lifetime support
