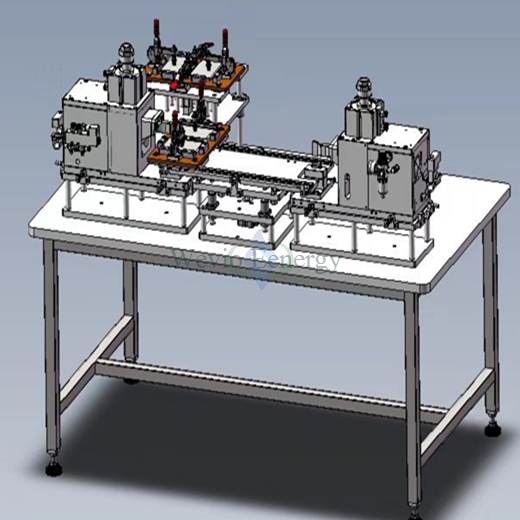

Pouch cell Prismatic cell battery pilot line assembly line top cover final End Cap Welding Machine

Functional description:
1. Manual loading and unloading;
2. Tab position deviation: ±0.5mm;
3. Cathode and anode both use 6KW ultrasonic welding machine with adjustable power
4. Cathode and anode use different tooth-shaped fixtures and welding parameters.
5. Cathode and anode share one table.

Equipment size: L1280mm*W800mm*H1400mm
Power supply: three-phase AC380V±10%, frequency 50Hz, power 12KW
Weight: about 850kg
