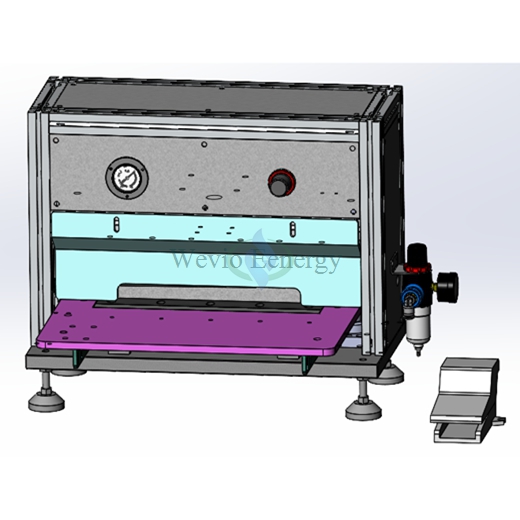

Pouch cell battery pilot line assembly line aluminum plastic film trimming machine

Functional description:

1. Effective width of cutter 200mm;
2. Blade is SKD11, quenched HRC58-60;
3. Service life of cutter: 1 million times;
4. The height of loading platform can be adjusted according to the thickness of battery cell.

Equipment size: length 550x width 400x height 380mm (height does not include workbench) Power supply: none (pure pneumatic)
Weight: about 50kg
