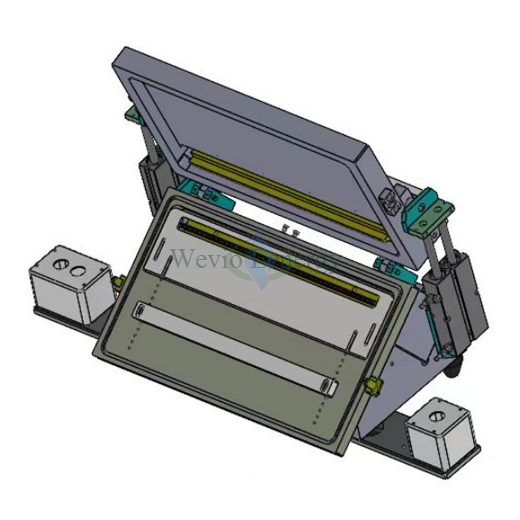

Pouch cell battery pilot line assembly line aluminum plastic film packaging pre-sealing machine

Functional description:

1.effective head length 250mm;
2.sealing width: 6mm;
3.head temperature: ≤250℃, accuracy ±2.5℃;
4. sealing time: 0~99s adjustable, recommended 2~4s;
5. vacuum degree: -99KPa (reach vacuum time < 10s);
6. built-in program, can breathe first and then vacuum seal.

Equipment Dimensions: L520mm x W400mm x H500mm
Power supply: single-phase AC220V ± 5%, 50Hz, power 2.5kw.
Weight: 52Kg
