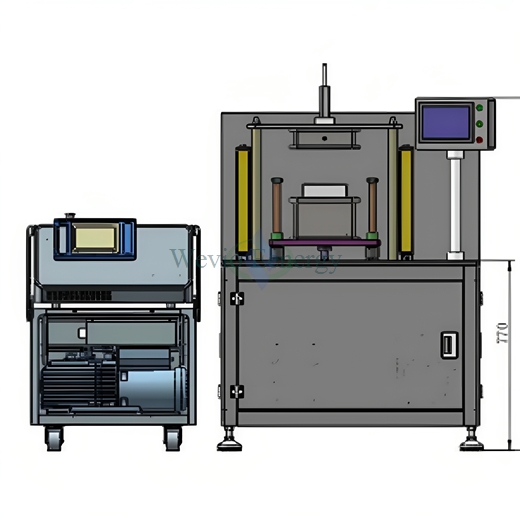

Pouch cell Prismatic cell battery pilot line assembly line can case helium test airtightness test machine
Compatible battery cell size:
|
S/N |
Size code |
Dimensions (mm) |
Dimensions (mm) |
Dimensions (mm) |
Remark |
|
1 |
T |
32 |
52 |
43 |
Thickness |
|
2 |
W |
193 |
148 |
220 |
Width |
|
3 |
H |
171 |
115 |
105 |
Height (including pole) |
2.1.2 Compatibility range of incoming products:
Battery thickness: 32-52mm (32, 43, 52)
Battery width: 148-220mm (148, 193, 220)
Battery height: 105-171mm (105, 115, 171)
2.1.3 Cell interface:
1) Evacuate and inject helium into the cell through the cell injection port.
2.2 Technical parameters of vacuum box:
2.2.1 Number of vacuum boxes: 1;
2.2.2 Number of cells tested per box: 1;
2.2.3 Method of cells entering and exiting the vacuum box: manually taking cells in and out of the vacuum box.
2.2.4 Method of opening and closing the door of the vacuum box: jacking type.
2.3 Testing parameters:
2.3.1 Helium pressure: 0.005-0.15MPa, the pressure is adjustable within this range.
2.4 System technical indicators:
2.4.1 Equipment overkill rate: ≤0.5%, underkill rate: 0%;
2.4.2 Battery leakage rate requirement: ≤9.9×10-7Pa*m3/s;
2.4.3 Minimum detectable leakage rate of leak detector: ≤1×10-12Pa*m3/s;
2.4.4 Primary helium test, 58s/item, test timing diagram see Figure 2; secondary helium test, 42s/item, test timing diagram see Figure 3
