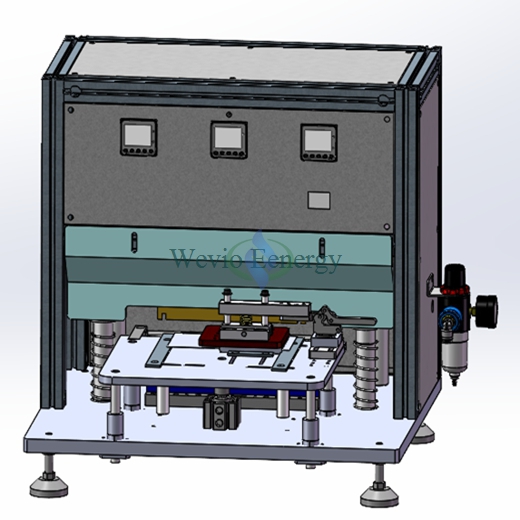

Pouch cell battery pilot line assembly line aluminum plastic film sealing machine Side Sealing Machine Top Sealing Machine

 Functional description:
1. Sealing temperature: adjustable from room temperature to 230°, compensation can be set;
2. Effective length of the sealing head ≥ 280mm;
3. Parallelism of the upper and lower sealing heads ±0.02mm;
4. Holding time: adjustable from 0 to 999 seconds;
5. Support hard sealing for better sealing effect;
6. Provide battery restraint fixture for easy operation.

Equipment size: L500mm*W400mm*H540mm
Power supply: AC220V±10%, frequency 50Hz, power 1.2KW
Weight: about 45kg
