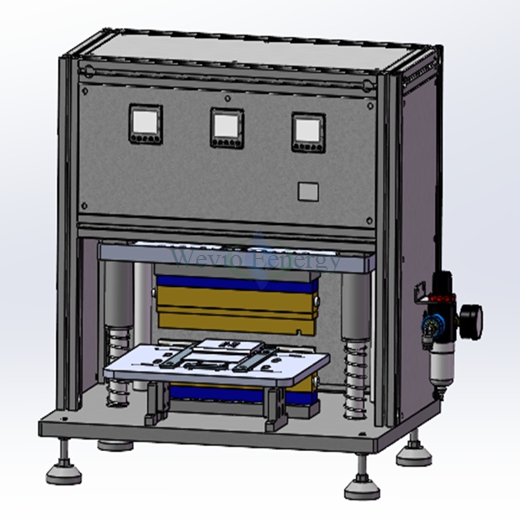

Pouch cell battery pilot line assembly line aluminum plastic film sealing machine Side Sealing Machine

Function description:

1. sealing temperature: room temperature ~250° adjustable, compensation can be set;
2. control accuracy ±3°;
3.the upper and lower head parallelism ±0.02mm;
4. pressure holding time: 0-999 seconds adjustable;
5. the use of hard seal, sealing effect is better;
6. provide battery restraint fixture, easy to operate.
Equipment Dimensions: L450mm x W400mm x H540mm
Power supply: AC220V±10%, frequency 50Hz, power 1.2KW
Weight: About 50kg
