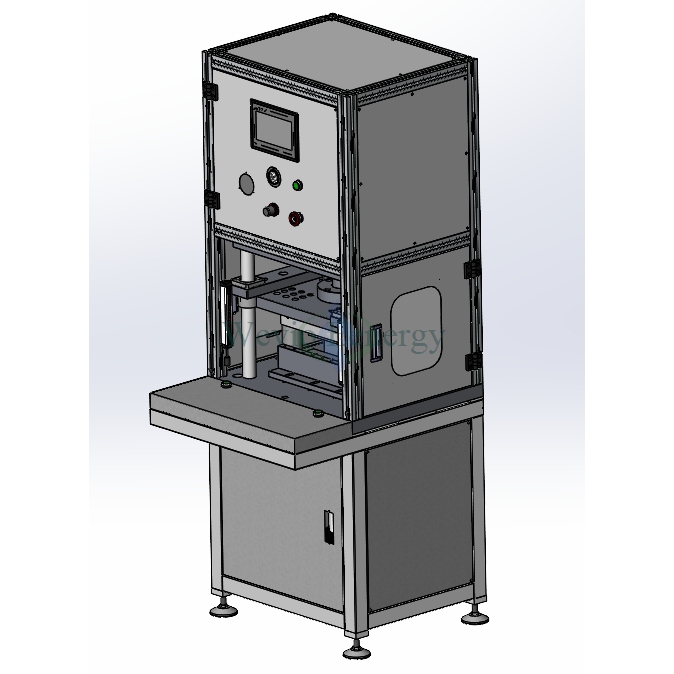

Pouch cell battery pilot line assembly line aluminum plastic film forming machine

Function description:
1.10T Taiwan Jiustrength liquid pressurization cylinder (a double pit);
2.three plate mold, the depth of the battery punching shell can be adjusted according to the process requirements;
3.four corner depth range: ≤0.1mm (four corner edge thickness is greater than 60μm);
4.efficiency: 4ppm.
Equipment size: Length 700mmx width 700mmx height 1900mm
Power supply: AC220V±10%, frequency 50Hz, power 1.5KW
Weight: About 300kg
