Vacuum Heat Sealing Machine for Lab Pouch Cell Battery Case Pre Sealing Electrolyte degassing

Vacuum Heat Sealing Machine for Lab Pouch Cell Battery Case Pre Sealing Electrolyte degassing

Products Introduction

Vacuum pre-sealing machine is mainly suitable for vacuuming and hot-pressing pre-packaging of flexible packaging lithium battery after liquid injection and standing. The machine can automatically complete the vacuum thermal encapsulation of the cell aluminum-plastic shell by precisely controlling the main vacuum exhaust box and pneumatic thermal sealing components.

Product Features

* The head is made of copper material, good heat transfer effect, save power consumption, improve work efficiency, energy saving than similar products;

* The pressure of the upper and lower head can be adjusted by the pressure regulator to achieve different technical parameters;

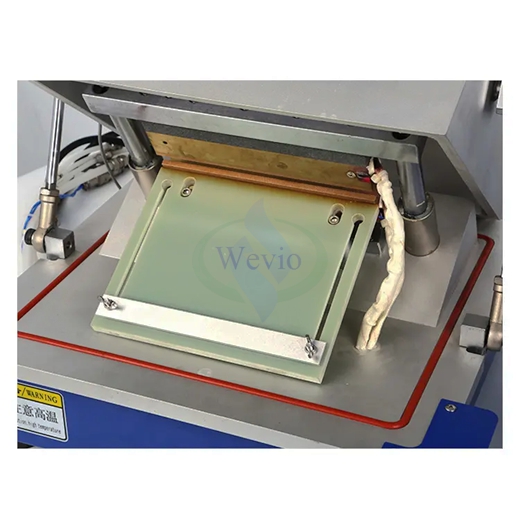

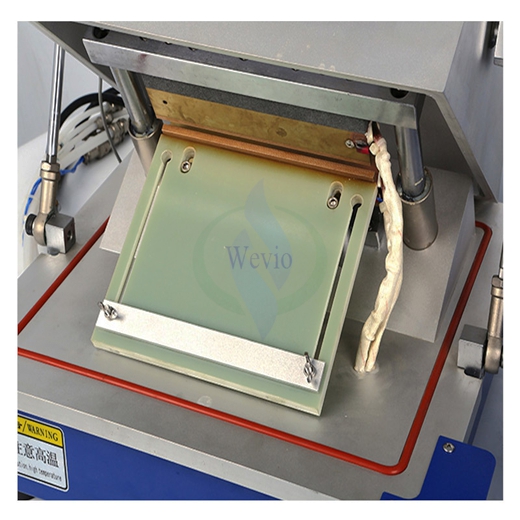

* The upper and lower head is driven by the cylinder through two linear guide sleeves, which accurately ensures the parallelism of the product after edge sealing;

* Through the perspective window, changes in the cavity can be observed while working.

* The cover cavity is driven by the cylinder, guided by the rotating guide sleeve, the up and down movement is lively, and the guidance is accurate to ensure the sealing requirements of the product.

* Can be applied to different specifications of product batteries, and the adjustment is simple and convenient.

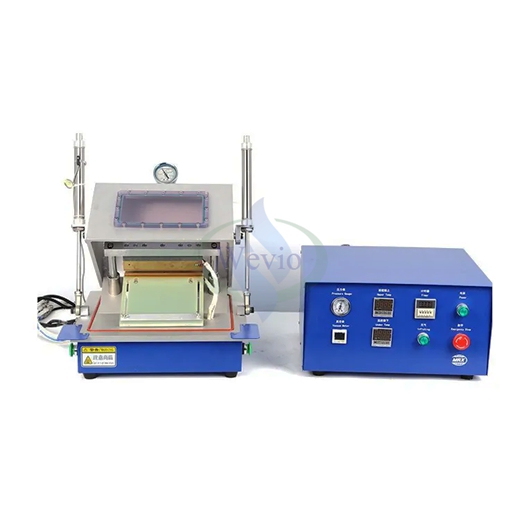

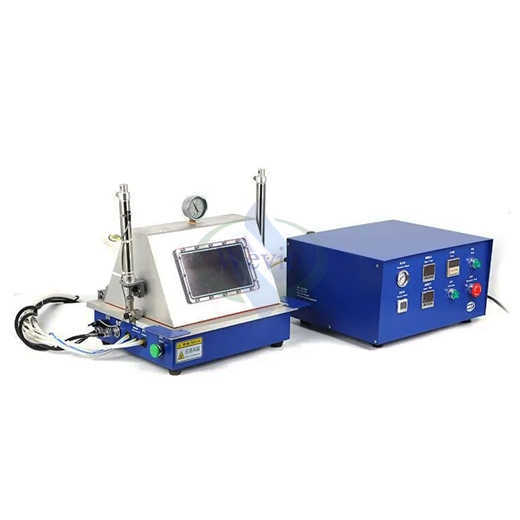

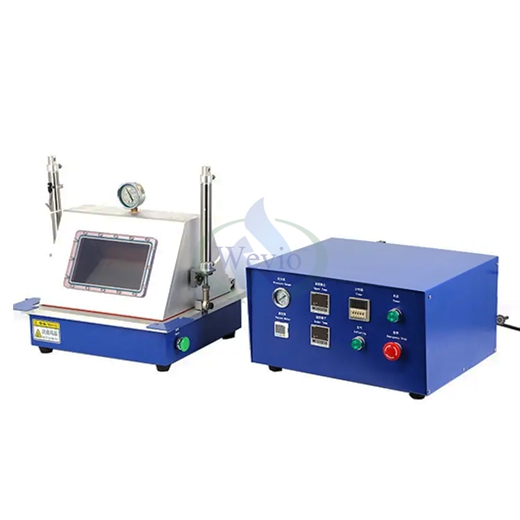

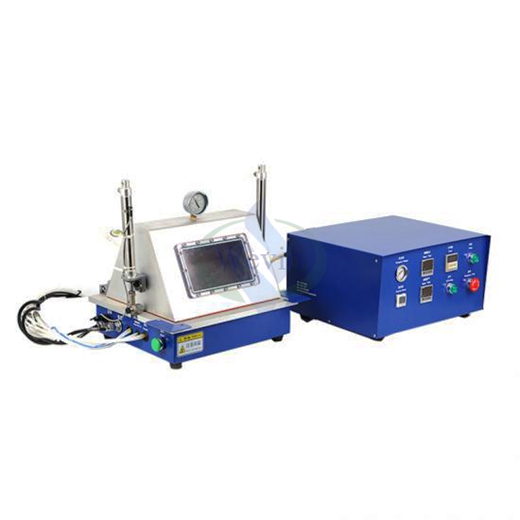

* The main machine and control box split design, so that the machine can be placed in the glove box work, can also be placed on the assembly line work.

* Beautiful appearance, small size, light weight. *PLC touch screen control, easy to understand operation.

Product parameter

Head length: 200mm

Edge width: 5mm; Can be customized according to requirements

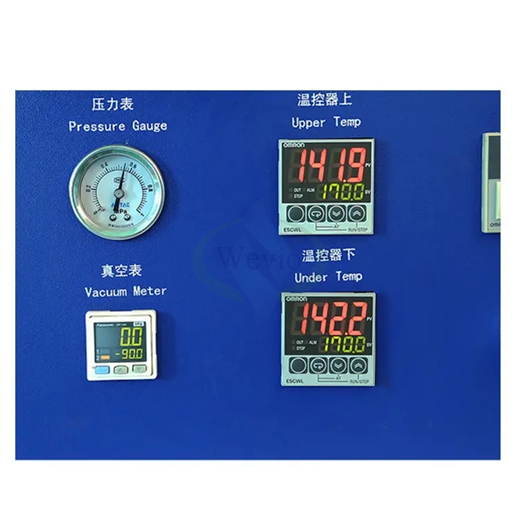

Head temperature: normal temperature ~300℃, the temperature is adjustable

Temperature control accuracy: ±2℃

Heat sealing time: 0 ~ 99 seconds adjustable

Vacuum degree: adjustable up to -98Kpa

Parallel clearance when the upper and lower heads are engaged: ≤0.02mm

Power supply: AC220V/50Hz

Air source: 5~7Kg/cm2 adjustable

Dimensions: Working section: L470xW485xK435mm;

Control box: L420xW325xH225mm

Equipment weight: about 50Kg
