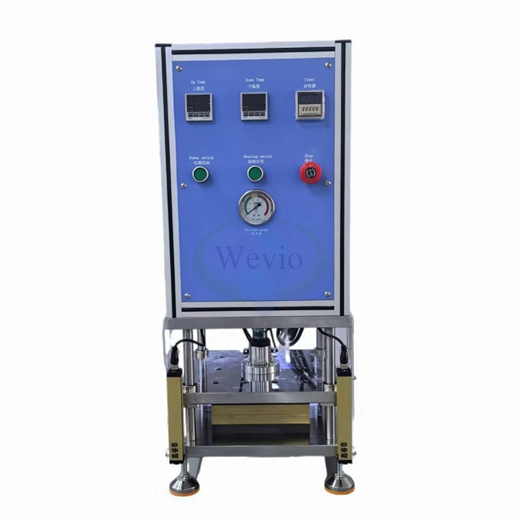

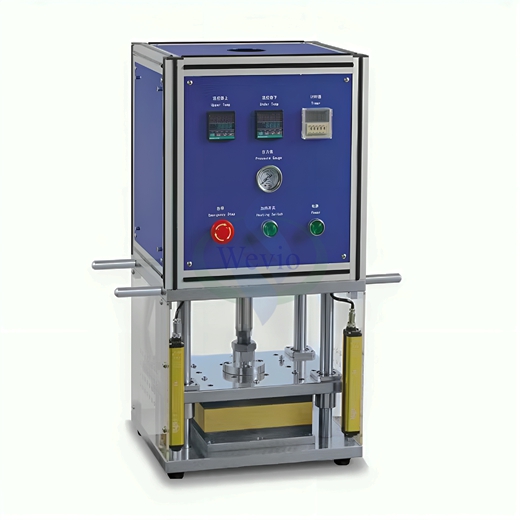

Lithium Ion Battery Lab Machine Hot Pressing Machine for Pouch Cell Battery

Lithium Ion Battery Lab Machine Hot Pressing Machine for Pouch Cell Battery

Products Introduction

It is suitable for hot pressing and shaping of flexible packaging lithium battery after winding, and it is easy to enter the shell and smooth the shape of soft pack after the naked battery is shaped. It is also used for hot pressing and forming of finished battery.

Product Features

* Constant temperature automatic control, automatic hot pressing timing.

* The pressure is continuously adjustable.

* The heating body is made of copper.

* The machine is compact and flexible in use.

* The whole machine is safe, stable, reliable control and easy to operate.

Product parameter

Effective compression area (LW):200x200mm

Working speed: 300 ~ 500 times/hour

Pressure: 0 ~ 1 ton

Power supply: AC220V 50HZ

Power: 1KW

Air pressure source: 0.5 ~ 0.7Mpa

Dimensions: L320xW320xH430mm

Weight: 60Kg
