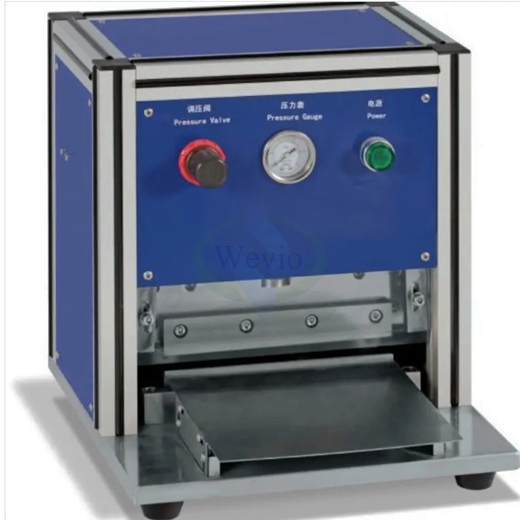

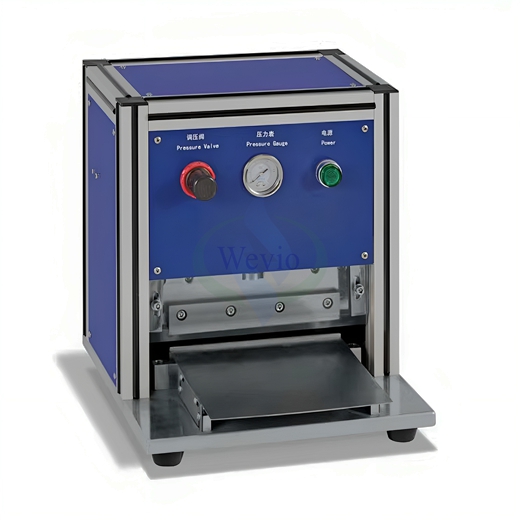

Pneumatic Battery Trimming Cutting Machine for Pouch Cell Edge Cutting

Pneumatic Battery Trimming Cutting Machine for Pouch Cell Edge Cutting

Products Introduction

Suitable for flexible packaging lithium battery packaging aluminum-plastic film molding, four sides cut in place.

Product Features

* The cylinder punching method is adopted, and Taiwan Airtek cylinder is selected.

* The upper cutting tool is guided by the mold ball guide column and guide sleeve, and the guiding accuracy is extremely high to ensure the zero gap between the upper and lower cutting tools and the working life.

* The upper and lower cutting knives are made of high speed steel with sharp blades.

* Pedal operating device;

Product parameter

Working speed 10 times/min or more;

Cutting edge width: 2.5 ~ 8mm adjustable margin; Cutting dimension length: 200mm;

Power supply: AC220/50Hz;

Air source: 0.5MPa~0.7Mpa;

Dimensions: L320xW160xH340mm.;

Weight: 40KG;
