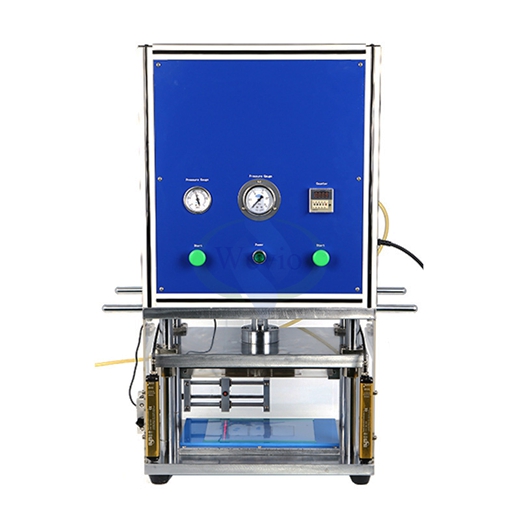

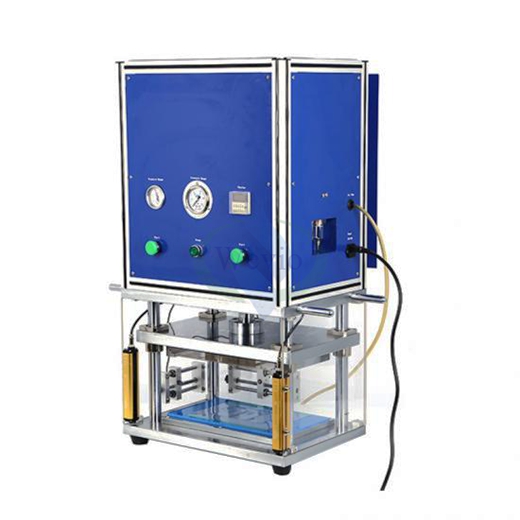

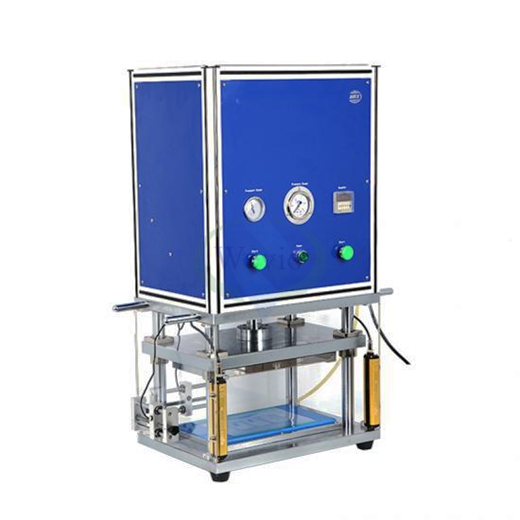

Li-ion Battery Die Cutting Machine for Pouch Cell Electrode Punching

Li-ion Battery Die Cutting Machine for Pouch Cell Electrode Punching

Products Introduction

Semi-automatic electrode die cutting machine is an efficient mass production of flexible packaging positive and negative sheet forming equipment, but also a convenient and fast laboratory soft pack lithium battery, positive and negative sheet forming multi-functional experiment and production equipment.

Product Features

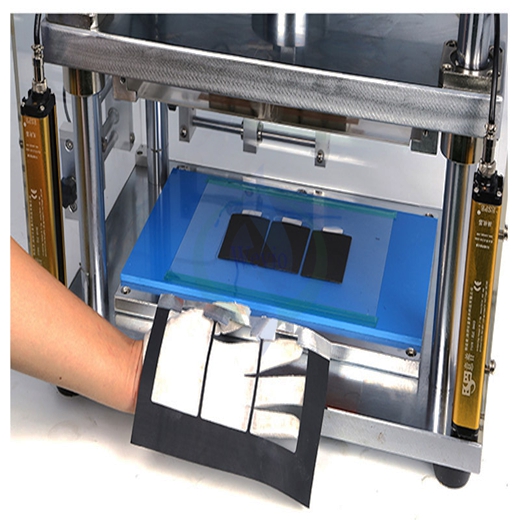

* Roll type or chip type electrode plate feeding, knife template to achieve die cutting

* Pneumatic hydraulic booster cylinder drive, punching force adjustable

* Easy and fast to replace the die;

* Die-cutting products have small burrs, no powder, no indentation and other bad appearance;

* Easy to operate, safe and reliable, beautiful appearance, small size.

* Equipped with laser positioning device;

* Equipped with safety protection light curtain and transparent protection plate, double     button start to avoid misoperation

Product parameter

Power supply: 220V/50Hz;

Power: 100W

Compressed air: 0.5Mpa~ 0.8Mpa

Maximum punching size: 280x180mm

(The maximum punching size can also be unlimited according to customer requirements); Booster cylinder: 3T

Cutting accuracy: ± 0.1mm

Dimensions: L550xW455xH900mm

Equipment weight: 180kg
