Pouch Cell Battery Forming Machine Lab Aluminum Laminated Film for Punching machine Pouch Cell Case Cup

Pouch Cell Battery Forming Machine Lab Aluminum Laminated Film for  Punching machine Pouch Cell Case Cup

Products Introduction

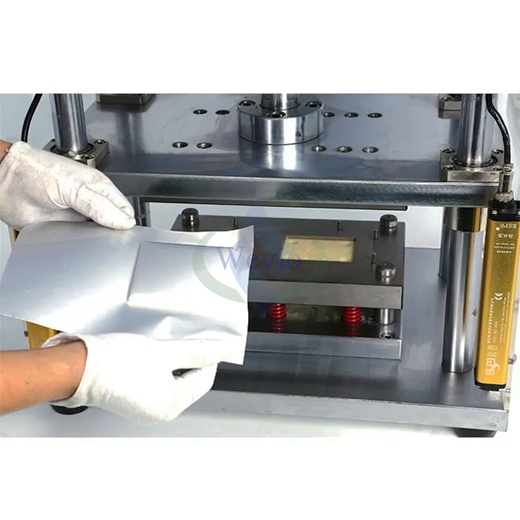

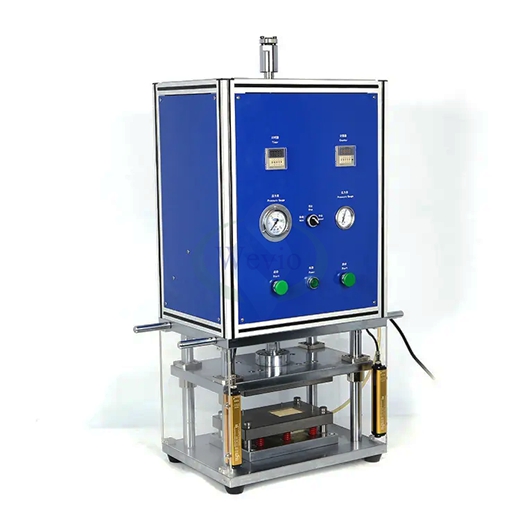

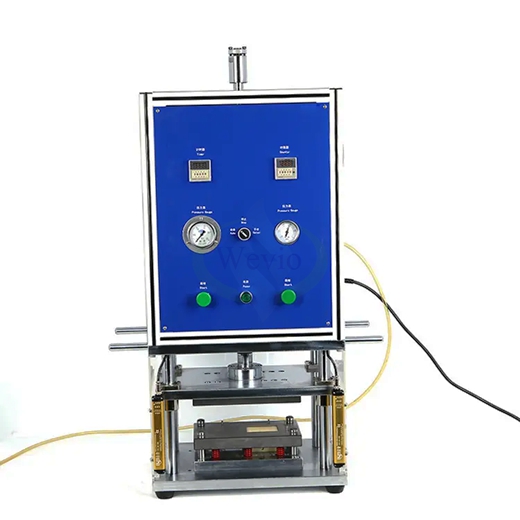

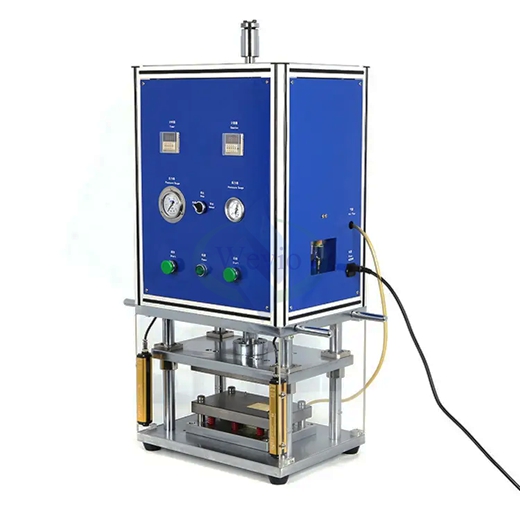

Semi-automatic aluminum-plastic film forming machine is suitable for soft packaging lithium battery aluminum-plastic film punching shell forming. The equipment uses the principle of pressurization cylinder to realize the pressure required for stamping and forming, so that the small air source pressure is converted into a large liquid pressure output, so as to drive the mold to punch the aluminum-plastic film shell.

Product Features

* Easy and fast to adjust the drawing depth.

* Easy and fast to replace mold.

* No crow's feet and falling corners in and around the molded product.

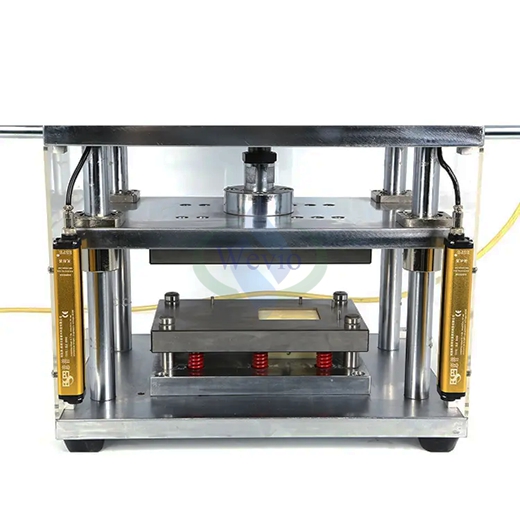

* Four-guide column structure, sliding smoothly up and down with high precision.

* Use light curtain, double button operation and cover protection, safe to use.

* Compared with similar products, the same quality of aluminum-plastic film this product pulls

Reach deeper and more stable.

* Easy to operate, safe and reliable, beautiful appearance, small size.

Product parameter

Applicable specifications: MaxL200mmW150mm (can be customized according to requirements) Punching depth Max6mm, related to the quality of tensile strength aluminum-plastic film

Booster cylinder: 3T, adjustable

Counting mode: counter display

Power supply: AC220V/50Hz

Power: 100W

Air source: 0.5MPa~0.7MPa

Weight: Approx. 180kg

Device size: L460xW320xH925mm

Mold part:

Mold/core roughness: 0.4

Upper and lower die flatness: 0.02mm

Core flatness: 0.02mm
