Products Introduction:

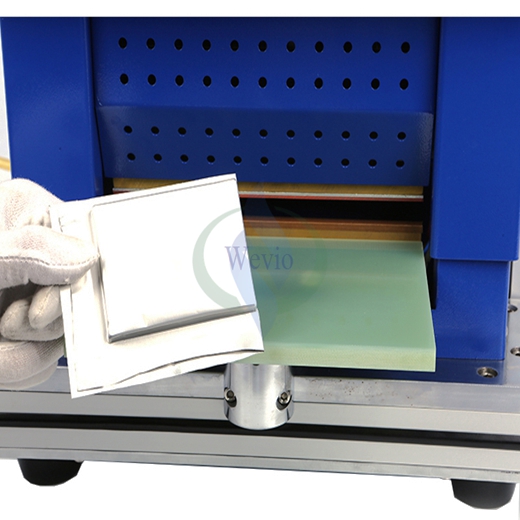

The top side sealing machine is mainly suitable for the packaging of the top side and side of the flexible packaging lithium battery. The heat is transferred to the head (copper) through the heating pipe, and the heat conduction effect is applied to the aluminum-plastic film of the lithium battery

Above, under the action of a certain pressure, it is heated to become soft and close to the melting state to complete the pressure fusion joint.

Product Features

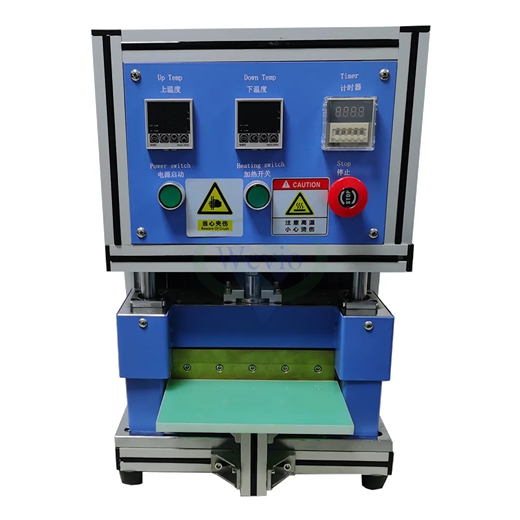

The temperature of the head can be adjusted and maintained by thermocouple and thermostat

Constant temperature

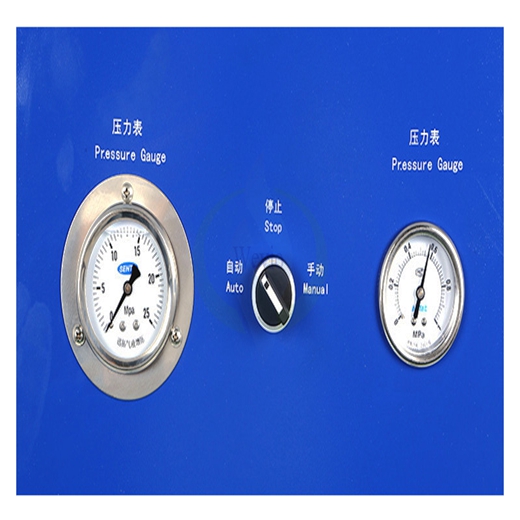

Built-in pressure gauge. The size of package pressure can be observed and accurately controlled

The sealing edge is firm, the sealing mark is even and uniform, the packaging shape is beautiful and unique safety protection, anti-hot design

More than 50% energy saving with similar products

The soft sealing tool achieves top sealing and side sealing without changing the mold

Simple operation, safe and reliable, beautiful appearance, small size

Product parameter

Head length: ≤200mm

Seal width: standard 5mm (can be customized according to demand) edge thickness: 0.15~0.3mm

Applicable specifications: Side seal s200mm

Top seal ≤200mm (including air bag) (can be customized according to demand)

Upper mold temperature: Max300 ° C 200 ° C Lower mold temperature: Max300 ° C 160 ° C Heat seal pressure: 0.5~0.7MPa adjustable

Package time: Standard 25~35(0-99s adjustable) Power supply: AC220V/50Hz

Power: 900W

Dimensions: L320xW320xH500mm

Equipment weight: 30KG
