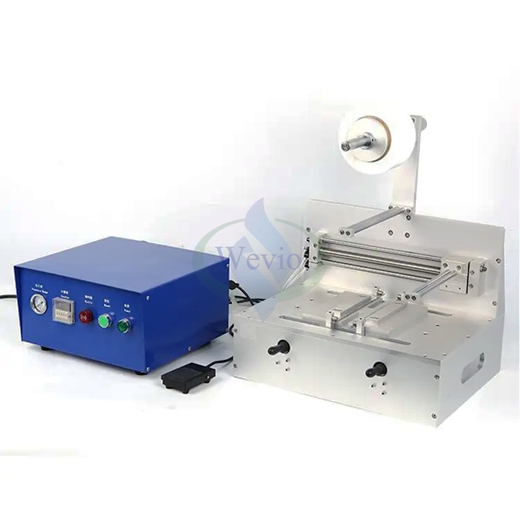

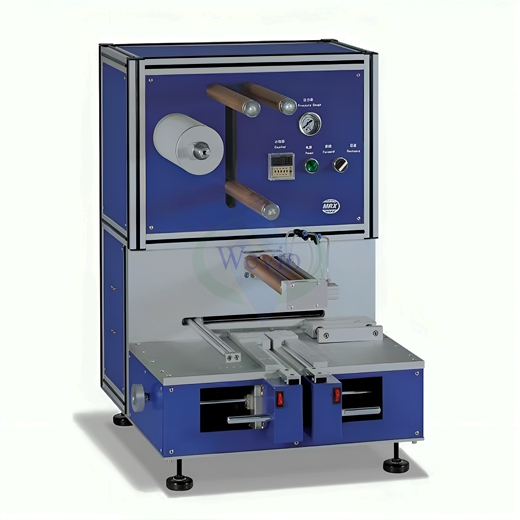

Pouch cell battery Lamination stacking laboratory research machine

Pouch cell battery Lamination stacking laboratory research machine

Products Introduction:

Applicable to the stacking process of battery cells, the positive and negative electrode sheets and diaphragms are carried out

Z-shaped stacking is a device that can be used in the stacking process of lithium ion batteries. The equipment adopts the automatic tension control system of the isolation film, and the cylinder drives the diaphragm to move left and right to realize the Z-shaped stacking, and the cantilever design is easy to operate.

Compared with the manual stacking, the device has the characteristics of high stacking efficiency, good stacking tidiness, and large range of battery sizes, which is an ideal choice for research and development sample production and small batch trial production equipment.

Product Features

* Easy to adjust, operate and maintain the machine;

* Suitable for large size range of cell stacking;

* Simple tension control

* Automatic counting, zero function

* Automatically keep the last used parameter status function after power failure and no use

* Large range of battery sizes for the whole machine

* Pedal switch is used to control cylinder action

* The machine is easy to adjust, operate and maintain

* High working efficiency, with digital timer

* Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance;

Product parameter

Lamination accuracy: uniformity is better than ±0.5mm

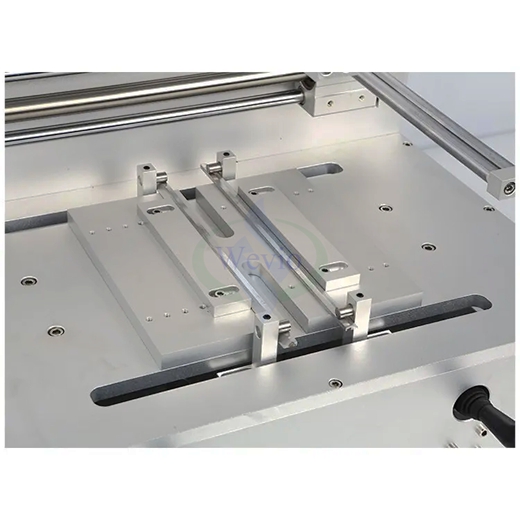

Stack size (including electrode length):Min.L44mmW44mm

(The smaller need to replace the press)Max.L200mmW150mm

(Pole ear on long side)

Laminated thickness: Max.12mm (the adjustment plate needs to be replaced if it is thicker)

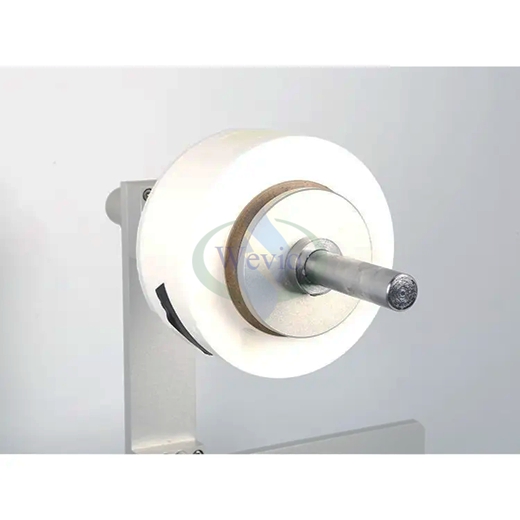

Diaphragm diameter: Max.220mm

Installation size: L512xW820xH580mm

Weight: About 50Kg

Power supply: 220V

Air source: 0.4~0.6MPa compressed air
